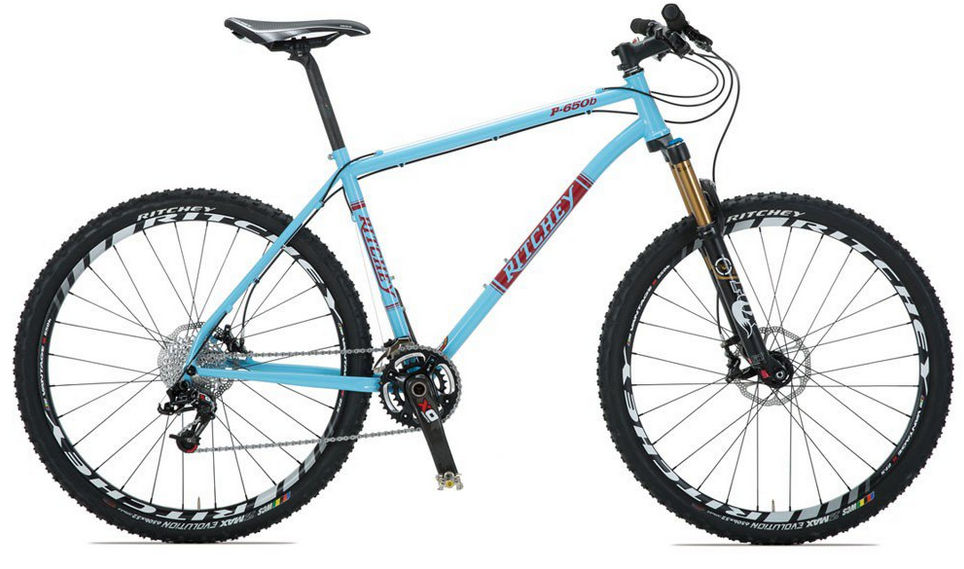

2015 Ritchey P-650B geometry
Full frame geometry for the 2015 Ritchey P-650B, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (15) | 567 | 411 | 73.5 | 69.5 | 100 | 580 | 381 | 719 | 50 | 649 | 432 | 1076 | 42 | 80 |
| M/17 | 583 | 421 | 73.5 | 70 | 115 | 595 | 431 | 756 | 50 | 659 | 432 | 1087 | 42 | 77 |
| L/19 | 597 | 431 | 73 | 70 | 130 | 615 | 483 | 792 | 50 | 674 | 432 | 1102 | 42 | 77 |
| XL/21 | 611 | 447 | 73 | 70 | 145 | 635 | 533 | 826 | 50 | 696 | 432 | 1123 | 42 | 77 |
All measurements in millimetres unless marked (°) for angles.
