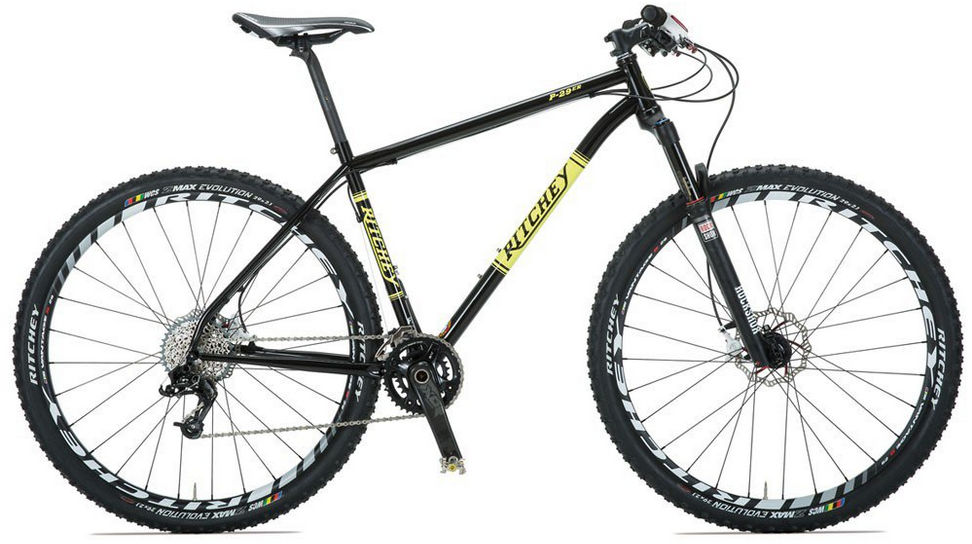

2015 Ritchey P-29ER geometry
Full frame geometry for the 2015 Ritchey P-29ER, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (15) | 578 | 399 | 73 | 69.5 | 100 | 580 | 380 | 60 | 645 | 447 | 1086 | 45 | 86 |
| M/17 | 589 | 414 | 73 | 70 | 100 | 595 | 431 | 60 | 656 | 447 | 1096 | 45 | 82 |
| L/19 | 604 | 430 | 73 | 70 | 115 | 615 | 483 | 60 | 677 | 447 | 1117 | 45 | 82 |
| XL/21 | 617 | 446 | 73 | 70 | 130 | 635 | 533 | 60 | 698 | 447 | 1138 | 45 | 82 |
All measurements in millimetres unless marked (°) for angles.
