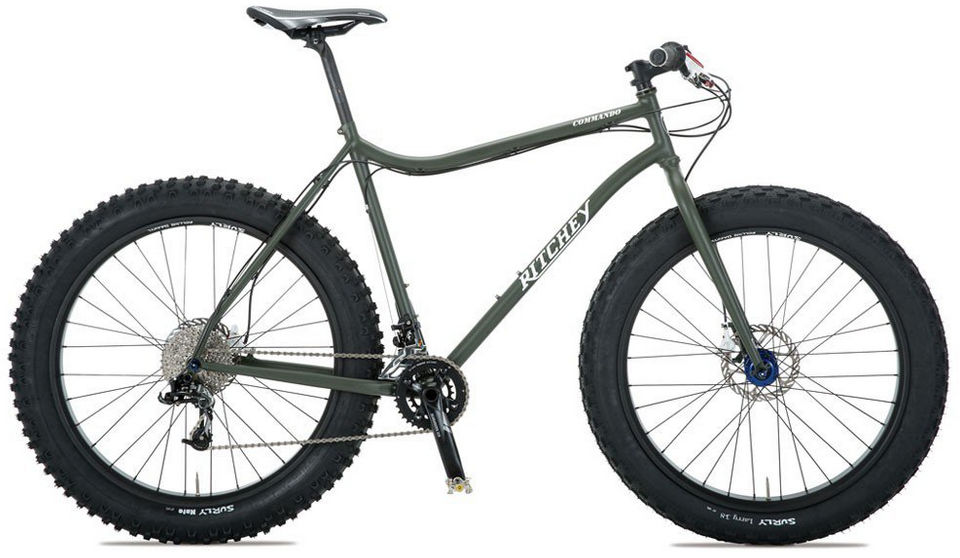

2015 Ritchey Commando geometry
Full frame geometry for the 2015 Ritchey Commando, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (15) | 557 | 404 | 73.5 | 69.5 | 100 | 570 | 400 | 713 | 641 | 463 | 1099 | 45 |
| M/17 | 574 | 410 | 73 | 70 | 115 | 586 | 445 | 749 | 647 | 463 | 1106 | 45 |
| L/19 | 590 | 417 | 72.5 | 70.5 | 130 | 604 | 490 | 784 | 655 | 463 | 1114 | 45 |
| XL/21 | 609 | 427 | 72 | 70.5 | 150 | 625 | 535 | 801 | 671 | 463 | 1130 | 45 |
All measurements in millimetres unless marked (°) for angles.
