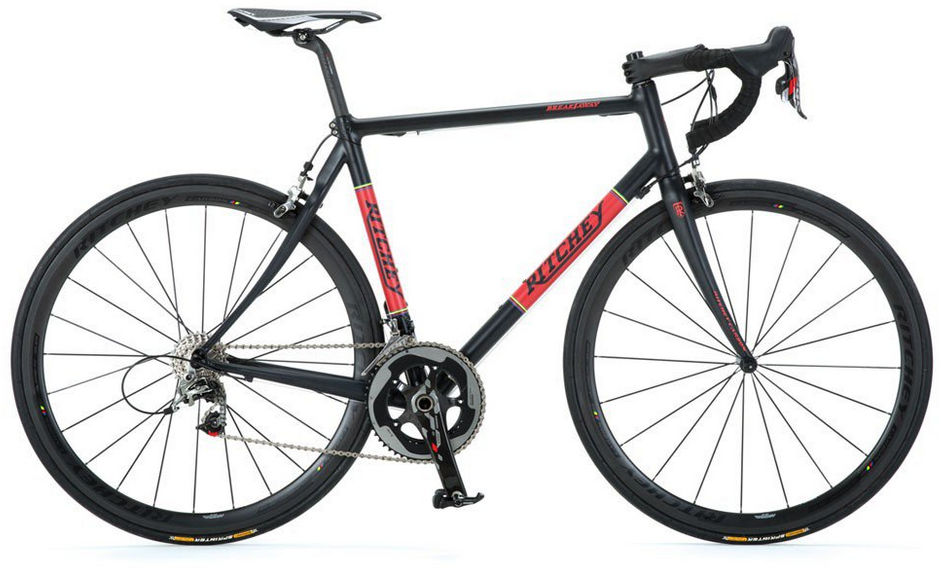

2015 Ritchey Breakaway Carbon geometry
Full frame geometry for the 2015 Ritchey Breakaway Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 384 | 75 | 72 | 100 | 520 | 480 | 72 | 574 | 410 | 973 | 45 | 61 |
| S | 528 | 391 | 75 | 72 | 120 | 533 | 480 | 72 | 587 | 410 | 987 | 45 | 61 |
| M | 563 | 391 | 74.5 | 73.5 | 150 | 548 | 540 | 72 | 582 | 415 | 986 | 43 | 54 |
| L | 580 | 394 | 73.5 | 73.5 | 170 | 566 | 540 | 70 | 590 | 415 | 995 | 43 | 54 |
| XL | 599 | 400 | 73 | 73.5 | 190 | 583 | 540 | 70 | 602 | 415 | 1007 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
