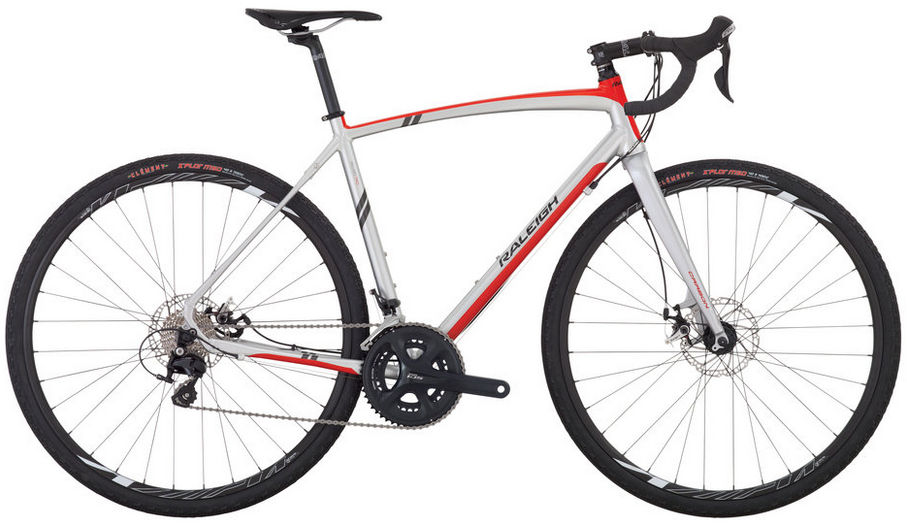

2015 Raleigh Willard MKI geometry
Full frame geometry for the 2015 Raleigh Willard MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 549 | 368 | 74 | 71 | 120 | 525 | 490 | 770 | 78 | 440 | 50 |
| 54 | 566 | 372 | 73 | 71 | 140 | 545 | 510 | 790 | 75 | 440 | 50 |
| 56 | 580 | 383 | 73 | 71 | 155 | 560 | 530 | 805 | 75 | 440 | 50 |
| 58 | 603 | 385 | 72.5 | 71.5 | 180 | 575 | 550 | 825 | 73 | 440 | 50 |
| 60 | 617 | 395 | 72.5 | 71.5 | 195 | 590 | 570 | 845 | 73 | 440 | 50 |
| 62 | 636 | 405 | 72.5 | 71.5 | 215 | 605 | 590 | 865 | 73 | 440 | 50 |
All measurements in millimetres unless marked (°) for angles.
