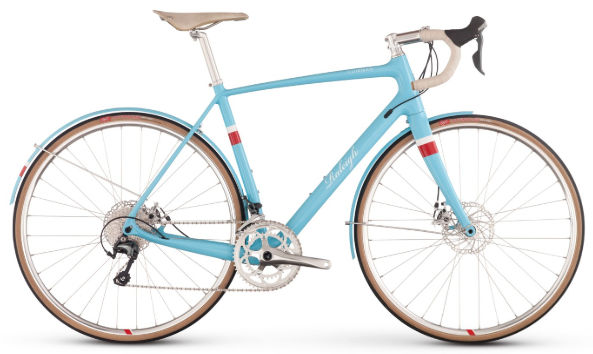

2017 Raleigh Clubman Carbon geometry
Full frame geometry for the 2017 Raleigh Clubman Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 550 | 374 | 71.5 | 71.2 | 140 | 535 | 490 | 740 | 77 | 412 | 50 |
| 54 | 570 | 376 | 71.5 | 72 | 160 | 545 | 510 | 760 | 75 | 412 | 50 |
| 56 | 585 | 386 | 71.5 | 72.3 | 175 | 560 | 530 | 778 | 75 | 412 | 50 |
| 58 | 601 | 389 | 71.5 | 72.3 | 195 | 575 | 550 | 799 | 72 | 412 | 50 |
| 60 | 616 | 398 | 71.5 | 72.5 | 210 | 590 | 570 | 816 | 72 | 412 | 50 |
| 62 | 630 | 409 | 71.5 | 72.5 | 225 | 605 | 590 | 834 | 72 | 412 | 50 |
All measurements in millimetres unless marked (°) for angles.
