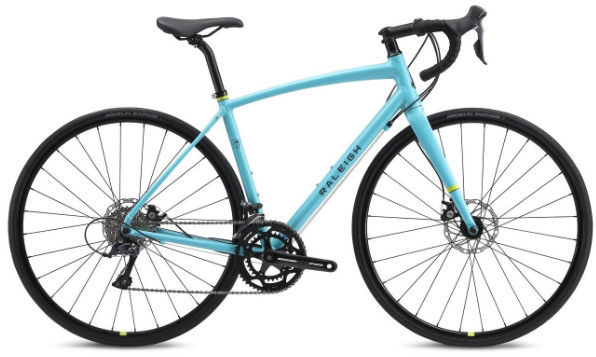

2017 Raleigh Revere geometry
Full frame geometry for the 2017 Raleigh Revere, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 501 | 361 | 74.5 | 70 | 105 | 500 | 435 | 705 | 72 | 410 | 50 |
| 50 | 526 | 364 | 74 | 70.5 | 130 | 515 | 460 | 730 | 72 | 410 | 50 |
| 52 | 547 | 363 | 73.5 | 71 | 150 | 525 | 485 | 755 | 72 | 410 | 50 |
| 54 | 561 | 369 | 73 | 71.5 | 165 | 540 | 510 | 775 | 70 | 410 | 50 |
| 56 | 582 | 377 | 73 | 72 | 185 | 555 | 535 | 800 | 70 | 410 | 50 |
All measurements in millimetres unless marked (°) for angles.
