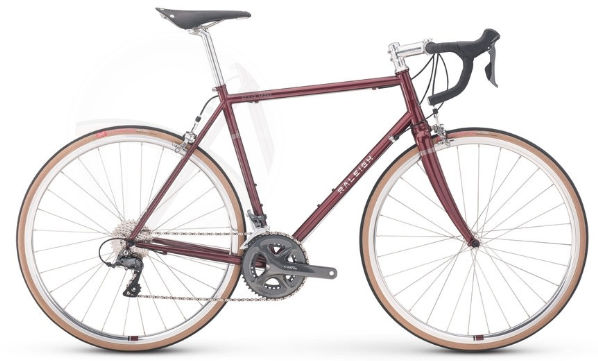

2017 Raleigh Grand Sport geometry
Full frame geometry for the 2017 Raleigh Grand Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 551 | 362 | 74 | 70 | 140 | 520 | 520 | 770 | 75 | 430 | 1012 | 50 |
| 54 | 569 | 366 | 73 | 70.5 | 160 | 540 | 540 | 790 | 72 | 430 | 1019 | 50 |
| 56 | 585 | 376 | 73 | 71 | 175 | 555 | 560 | 805 | 72 | 430 | 1029 | 50 |
| 58 | 602 | 383 | 73 | 71 | 195 | 570 | 580 | 825 | 70 | 430 | 1043 | 50 |
| 60 | 616 | 390 | 72.5 | 71 | 210 | 585 | 600 | 845 | 70 | 430 | 1056 | 50 |
| 62 | 635 | 400 | 72.5 | 71 | 230 | 600 | 620 | 865 | 70 | 430 | 1072 | 50 |
All measurements in millimetres unless marked (°) for angles.
