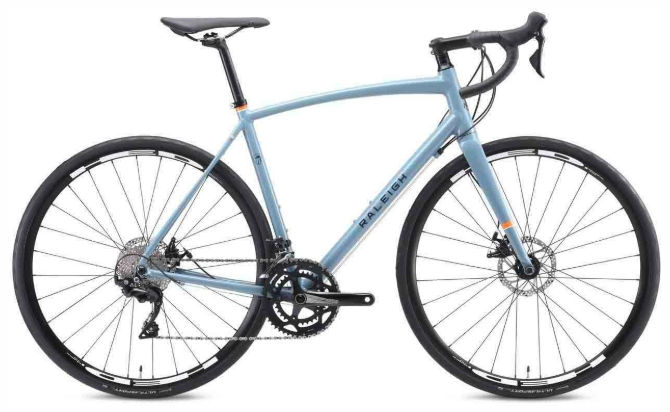

2017 Raleigh Merit geometry

Name: 2017 Raleigh Merit
Brand: Raleigh

Full frame geometry for the 2017 Raleigh Merit, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
52	542	370	73	71	140	535	490	760	78	412	50
54	562	373	74	72	160	545	510	780	75	412	50
56	578	383	73.5	72	175	560	530	800	75	412	50
58	594	391	72.5	72	195	575	550	820	72	412	50
60	609	398	72.5	72.5	210	590	570	835	72	412	50
62	624	408	72.5	72.5	225	605	590	855	72	412	50

All measurements in millimetres unless marked (°) for angles.
