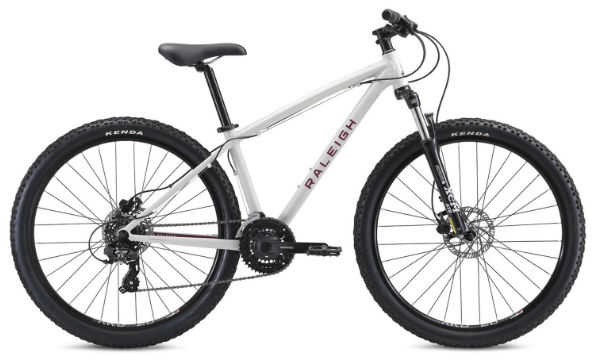

2017 Raleigh Eva geometry
Full frame geometry for the 2017 Raleigh Eva, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 561 | 373 | 73 | 70.5 | 100 | 530 | 350 | 714 | 45 | 430 | 1030 | 44 |
| S | 570 | 385 | 73 | 70.5 | 110 | 550 | 380 | 738 | 45 | 430 | 1046 | 44 |
| M | 575 | 399 | 73 | 70.5 | 120 | 570 | 430 | 771 | 45 | 430 | 1061 | 44 |
| L | 594 | 413 | 73 | 70.5 | 140 | 585 | 480 | 809 | 45 | 430 | 1082 | 44 |
All measurements in millimetres unless marked (°) for angles.
