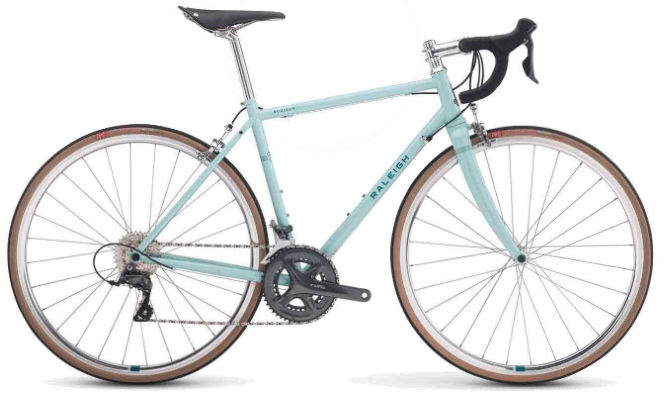

2017 Raleigh Addison geometry
Full frame geometry for the 2017 Raleigh Addison, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 531 | 364 | 76 | 70 | 150 | 495 | 450 | 696 | 80 | 430 | 50 |
| 50 | 541 | 360 | 74.5 | 70 | 130 | 510 | 475 | 718 | 70 | 430 | 50 |
| 52 | 556 | 361 | 74.5 | 70.5 | 145 | 515 | 500 | 746 | 75 | 430 | 50 |
| 54 | 570 | 366 | 73.5 | 71 | 160 | 535 | 525 | 772 | 72 | 430 | 50 |
All measurements in millimetres unless marked (°) for angles.
