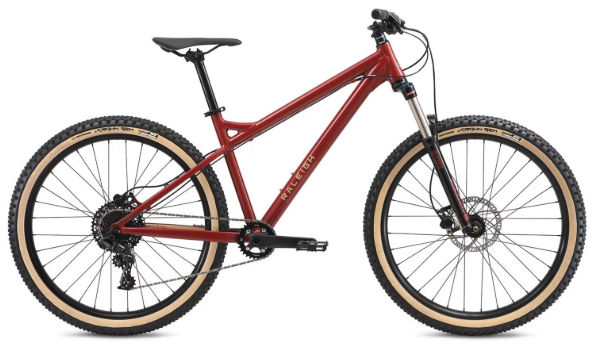

2017 Raleigh Tokul 3 geometry
Full frame geometry for the 2017 Raleigh Tokul 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 398 | 73 | 67.5 | 110 | 580 | 380 | 758 | 38 | 425 | 1121 | 42 |
| M | 604 | 415 | 73 | 67.5 | 120 | 600 | 430 | 745 | 38 | 425 | 1142 | 42 |
| L | 613 | 432 | 73 | 67.5 | 140 | 620 | 480 | 750 | 38 | 430 | 1163 | 42 |
| XL | 623 | 450 | 73 | 67.5 | 160 | 640 | 530 | 767 | 38 | 425 | 1184 | 42 |
All measurements in millimetres unless marked (°) for angles.
