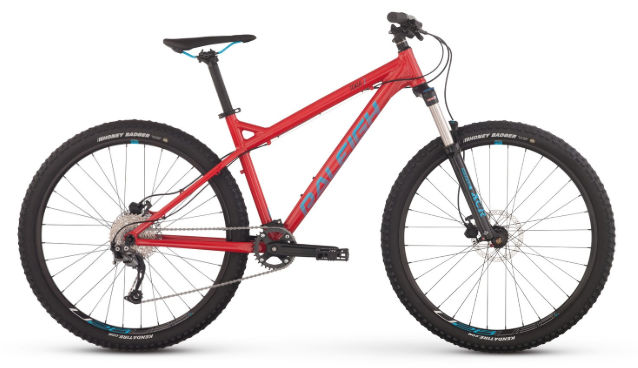

2017 Raleigh Tokul 2 geometry
Full frame geometry for the 2017 Raleigh Tokul 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 568 | 392 | 73 | 69 | 105 | 565 | 380 | 745 | 38 | 430 | 1068 | 42 |
| M | 574 | 410 | 73 | 69 | 110 | 585 | 430 | 745 | 38 | 430 | 1089 | 42 |
| L | 593 | 429 | 73 | 69 | 130 | 610 | 480 | 745 | 38 | 430 | 1105 | 42 |
| XL | 611 | 443 | 73 | 69 | 150 | 630 | 530 | 770 | 38 | 430 | 1127 | 42 |
All measurements in millimetres unless marked (°) for angles.
