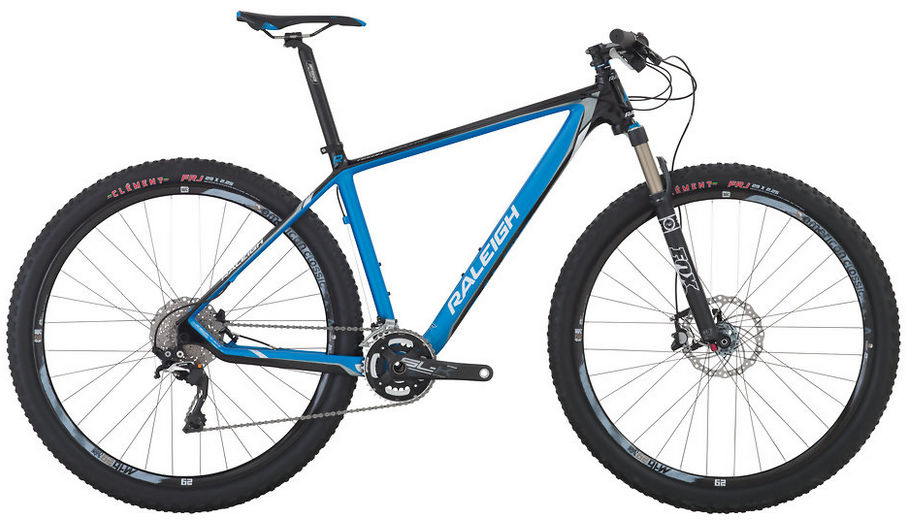

2015 Raleigh Tekoa Carbon geometry
Full frame geometry for the 2015 Raleigh Tekoa Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 406 | 73 | 69.5 | 105 | 595 | 430 | 800 | 65 | 445 | 44 |
| S | 619 | 386 | 73 | 69.5 | 105 | 575 | 390 | 775 | 65 | 445 | 44 |
| L | 621 | 425 | 73 | 70 | 105 | 615 | 480 | 820 | 65 | 445 | 44 |
| XL | 621 | 440 | 73 | 70 | 105 | 630 | 530 | 845 | 65 | 445 | 44 |
All measurements in millimetres unless marked (°) for angles.
