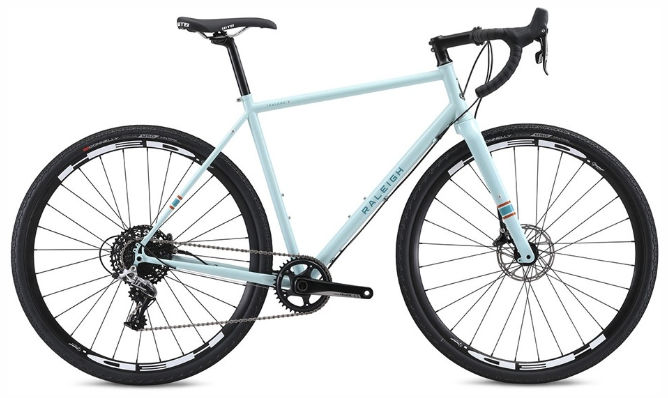

2017 Raleigh Tamland MKII geometry
Full frame geometry for the 2017 Raleigh Tamland MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 558 | 370 | 74.5 | 71 | 125 | 525 | 490 | 772 | 78 | 440 | 1024 | 52 |
| 54 | 576 | 372 | 73 | 71.5 | 145 | 545 | 510 | 791 | 75 | 440 | 1028 | 52 |
| 56 | 590 | 380 | 73 | 71.5 | 160 | 560 | 530 | 807 | 75 | 440 | 1043 | 52 |
| 58 | 602 | 385 | 72.5 | 71.5 | 175 | 575 | 550 | 829 | 72 | 440 | 1049 | 52 |
| 60 | 621 | 394 | 72.5 | 71.5 | 195 | 590 | 570 | 845 | 72 | 440 | 1064 | 52 |
All measurements in millimetres unless marked (°) for angles.
