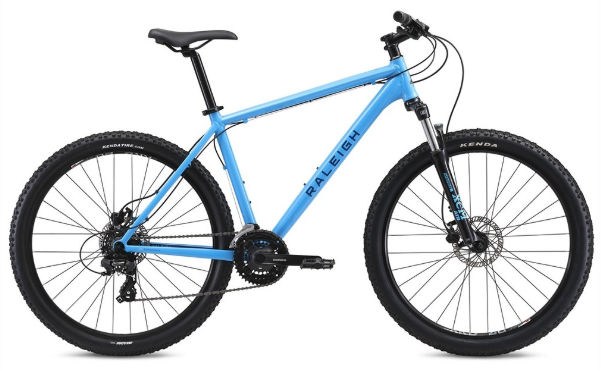

2017 Raleigh Talus geometry
Full frame geometry for the 2017 Raleigh Talus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 572 | 400 | 73 | 70 | 100 | 575 | 380 | 727 | 50 | 430 | 1062 | 42 |
| M | 577 | 418 | 73 | 70 | 110 | 595 | 430 | 740 | 45 | 430 | 1084 | 42 |
| L | 594 | 429 | 73 | 70 | 130 | 610 | 480 | 803 | 45 | 430 | 1100 | 42 |
| XL | 623 | 439 | 73 | 70 | 160 | 630 | 530 | 844 | 45 | 430 | 1122 | 42 |
All measurements in millimetres unless marked (°) for angles.
