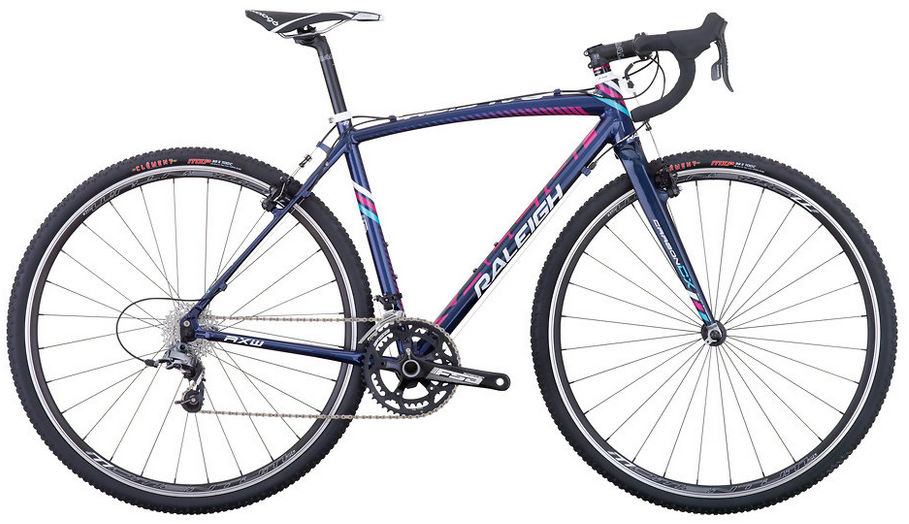

2015 Raleigh RXW geometry
Full frame geometry for the 2015 Raleigh RXW, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 526 | 369 | 76 | 70 | 105 | 500 | 450 | 745 | 70 | 425 | 45 |
| 50 | 530 | 373 | 75 | 70.5 | 110 | 515 | 475 | 760 | 68 | 425 | 45 |
| 52 | 546 | 374 | 74.5 | 71 | 125 | 525 | 500 | 775 | 68 | 425 | 45 |
| 54 | 560 | 374 | 73.5 | 71.5 | 140 | 540 | 525 | 800 | 65 | 425 | 45 |
| 56 | 581 | 377 | 73 | 72 | 160 | 555 | 550 | 825 | 65 | 425 | 45 |
All measurements in millimetres unless marked (°) for angles.
