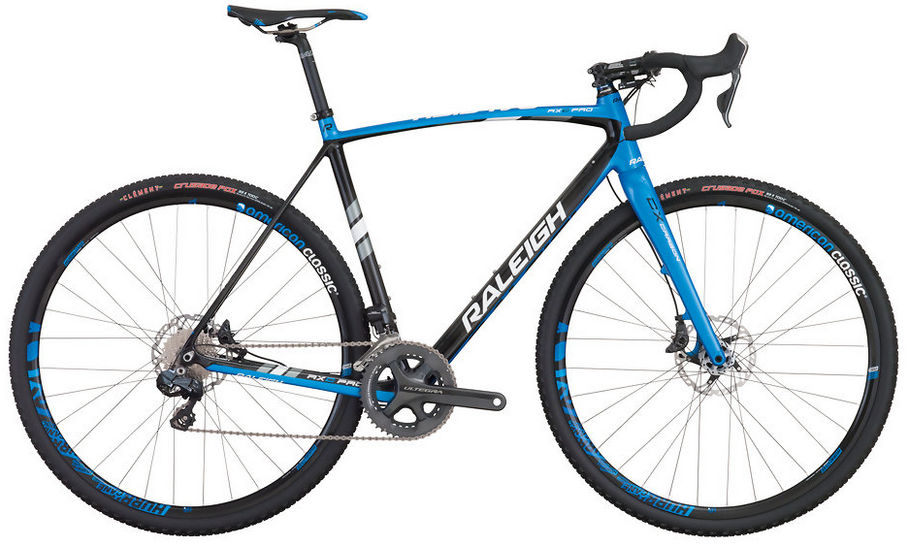

2015 Raleigh RXC Disc geometry
Full frame geometry for the 2015 Raleigh RXC Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 533 | 377 | 74.5 | 71.5 | 110 | 525 | 520 | 790 | 68 | 425 | 48 |
| 54 | 556 | 378 | 73.3 | 72 | 135 | 545 | 540 | 810 | 65 | 425 | 48 |
| 56 | 570 | 386 | 73 | 72 | 150 | 560 | 560 | 830 | 65 | 425 | 48 |
| 58 | 592 | 394 | 73 | 72 | 175 | 575 | 580 | 850 | 63 | 425 | 48 |
| 60 | 606 | 405 | 73 | 72 | 190 | 590 | 600 | 870 | 63 | 425 | 48 |
| 62 | 625 | 408 | 72.5 | 72 | 210 | 605 | 620 | 890 | 63 | 425 | 48 |
All measurements in millimetres unless marked (°) for angles.
