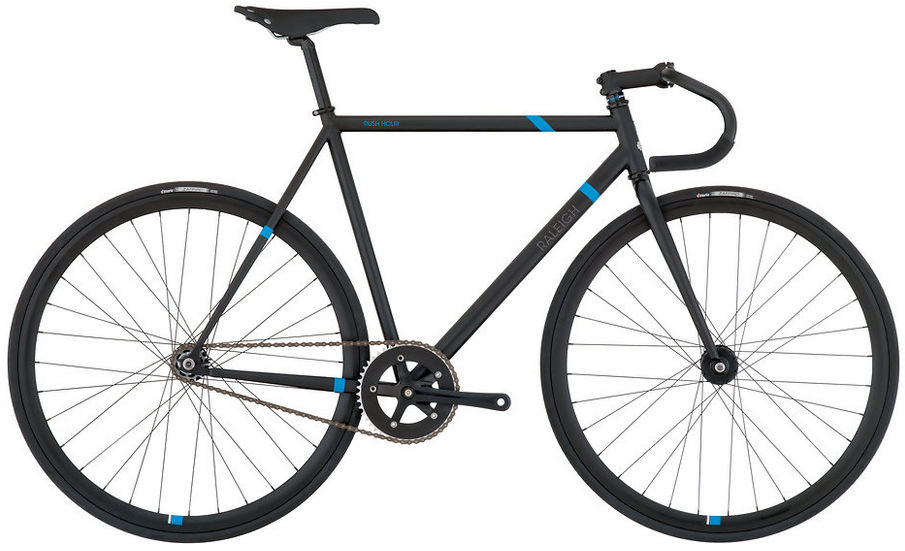

2015 Raleigh Rush Hour MK I geometry
Full frame geometry for the 2015 Raleigh Rush Hour MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 482 | 396 | 75 | 73.5 | 80 | 525 | 500 | 750 | 58 | 400 | 45 |
| 53 | 510 | 398 | 75 | 73.5 | 110 | 535 | 530 | 780 | 58 | 400 | 45 |
| 55 | 528 | 404 | 74.5 | 73.5 | 127 | 550 | 550 | 795 | 58 | 400 | 40 |
| 57 | 545 | 404 | 74 | 73.5 | 145 | 560 | 570 | 815 | 58 | 400 | 40 |
| 59 | 563 | 419 | 74 | 73.5 | 163 | 580 | 590 | 830 | 58 | 400 | 40 |
All measurements in millimetres unless marked (°) for angles.
