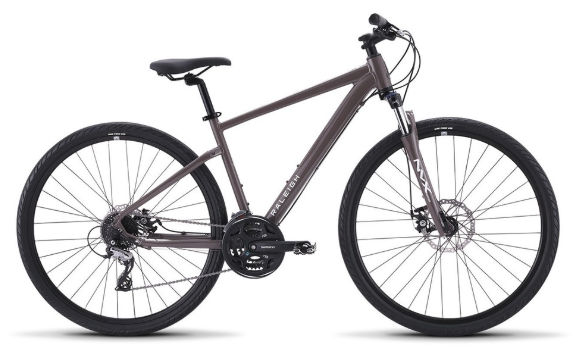

2017 Raleigh Route geometry
Full frame geometry for the 2017 Raleigh Route, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 566 | 380 | 73 | 70.5 | 130 | 555 | 460 | 760 | 75 | 440 | 1040 | 48 |
| M | 583 | 393 | 73 | 70.5 | 150 | 570 | 500 | 785 | 70 | 440 | 1059 | 48 |
| L | 599 | 412 | 73 | 70.5 | 170 | 595 | 540 | 820 | 70 | 440 | 1084 | 48 |
| XL | 618 | 421 | 73 | 70.5 | 190 | 610 | 580 | 845 | 70 | 440 | 1100 | 48 |
All measurements in millimetres unless marked (°) for angles.
