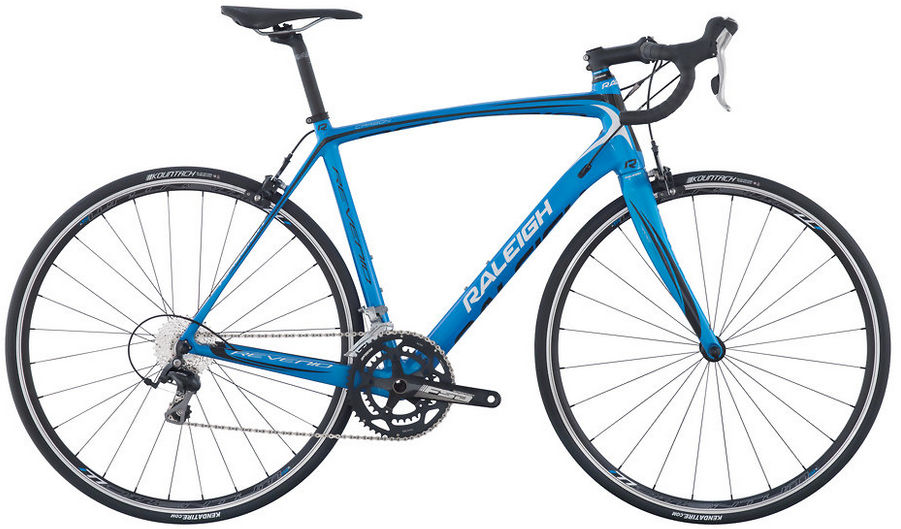

2015 Raleigh Revenio Carbon geometry
Full frame geometry for the 2015 Raleigh Revenio Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 545 | 369 | 74 | 71 | 145 | 525 | 490 | 760 | 73 | 410 | 50 |
| 54 | 564 | 373 | 73 | 71.8 | 165 | 545 | 510 | 780 | 70 | 410 | 50 |
| 56 | 580 | 383 | 73 | 72.3 | 180 | 560 | 530 | 800 | 70 | 410 | 50 |
| 58 | 597 | 390 | 72.8 | 72.3 | 200 | 575 | 550 | 820 | 68 | 410 | 50 |
| 60 | 612 | 397 | 72.5 | 72.5 | 215 | 590 | 570 | 835 | 68 | 410 | 50 |
| 62 | 626 | 408 | 72.5 | 72.5 | 230 | 605 | 590 | 855 | 68 | 410 | 50 |
All measurements in millimetres unless marked (°) for angles.
