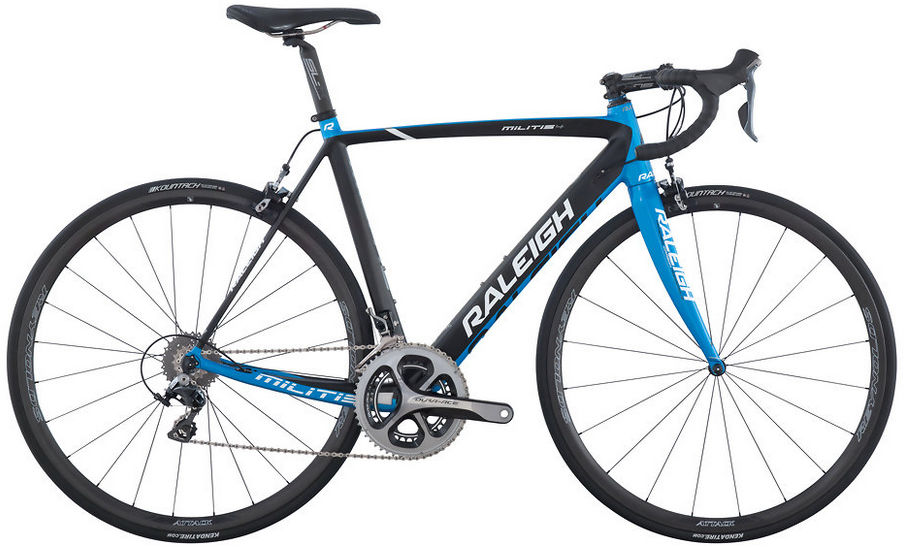

2015 Raleigh Militis geometry
Full frame geometry for the 2015 Raleigh Militis, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 514 | 383 | 74.5 | 73 | 115 | 525 | 500 | 745 | 68 | 405 | 45 |
| 53 | 533 | 382 | 73.5 | 73 | 135 | 540 | 530 | 770 | 68 | 405 | 45 |
| 55 | 549 | 382 | 73 | 73.5 | 150 | 550 | 550 | 785 | 68 | 405 | 45 |
| 57 | 568 | 397 | 73 | 73.5 | 170 | 571 | 570 | 805 | 68 | 405 | 45 |
| 59 | 584 | 402 | 73 | 73.5 | 185 | 580 | 590 | 825 | 68 | 405 | 45 |
| 62 | 599 | 411 | 72.5 | 74 | 200 | 600 | 620 | 845 | 68 | 405 | 45 |
All measurements in millimetres unless marked (°) for angles.
