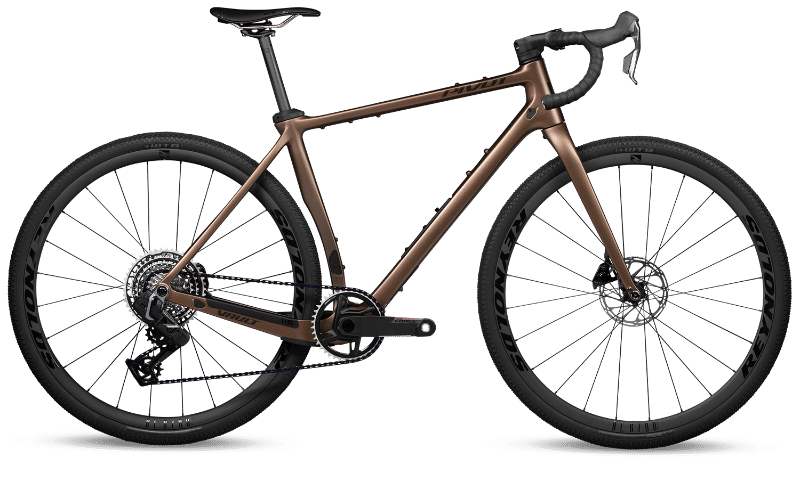

2025 Pivot Vault geometry
Full frame geometry for the 2025 Pivot Vault, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 529 | 360 | 75 | 69 | 85 | 502 | 390 | 80 | 420 | 1000 |
| XS | 554 | 380 | 74.3 | 70 | 110 | 536 | 430 | 78 | 420 | 1021 |
| SM | 568 | 390 | 73.8 | 70.4 | 125 | 555 | 480 | 76 | 420 | 1034 |
| MD | 592 | 405 | 73 | 70.7 | 150 | 586 | 500 | 75 | 420 | 1054 |
| LG | 605 | 415 | 73 | 70.8 | 165 | 600 | 520 | 73 | 420 | 1069 |
| XL | 639 | 425 | 73 | 71 | 200 | 620 | 540 | 73 | 420 | 1088 |
All measurements in millimetres unless marked (°) for angles.
