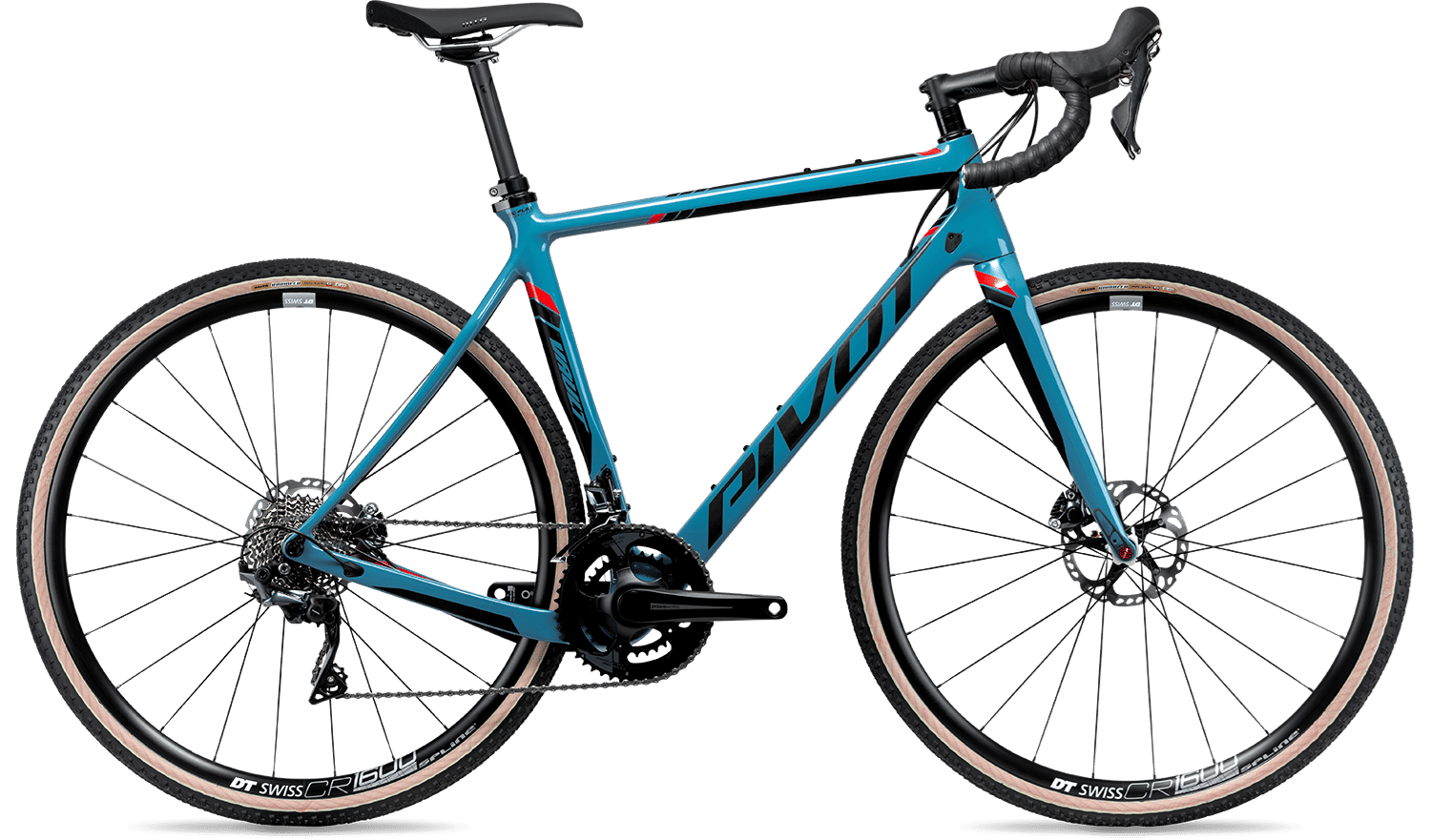

2019 Pivot Vault V4 geometry
Full frame geometry for the 2019 Pivot Vault V4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 374 | 74.8 | 70 | 105 | 515 | 458 | 705 | 70 | 420 | 1000 | 45 |
| S | 549 | 381 | 74 | 71.5 | 130 | 538 | 528 | 766 | 70 | 420 | 1002 | 45 |
| M | 574 | 395 | 73.5 | 72 | 155 | 565 | 548 | 787 | 70 | 420 | 1020 | 45 |
| L | 589 | 398 | 73 | 72 | 170 | 578 | 568 | 805 | 70 | 420 | 1028 | 45 |
| XL | 612 | 400 | 73 | 72 | 195 | 590 | 588 | 825 | 70 | 420 | 1038 | 45 |
All measurements in millimetres unless marked (°) for angles.
