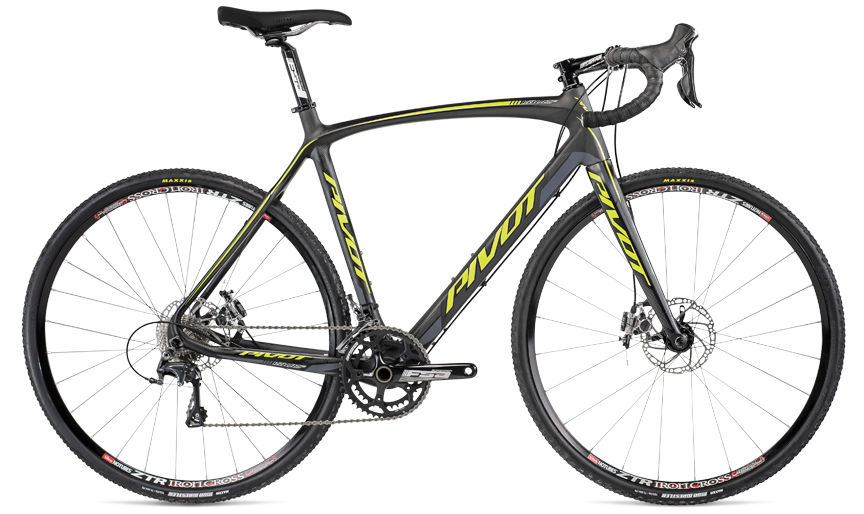

2015 Pivot Vault V3 geometry
Full frame geometry for the 2015 Pivot Vault V3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 373 | 74.5 | 71 | 120 | 520 | 500 | 65 | 585 | 425 | 1001 |
| S | 549 | 381 | 74 | 71.5 | 135 | 538 | 535 | 65 | 594 | 425 | 1010 |
| M | 570 | 388 | 73.5 | 72 | 155 | 557 | 560 | 65 | 603 | 425 | 1019 |
| L | 584 | 397 | 73 | 72 | 170 | 575 | 580 | 65 | 616 | 425 | 1033 |
All measurements in millimetres unless marked (°) for angles.
