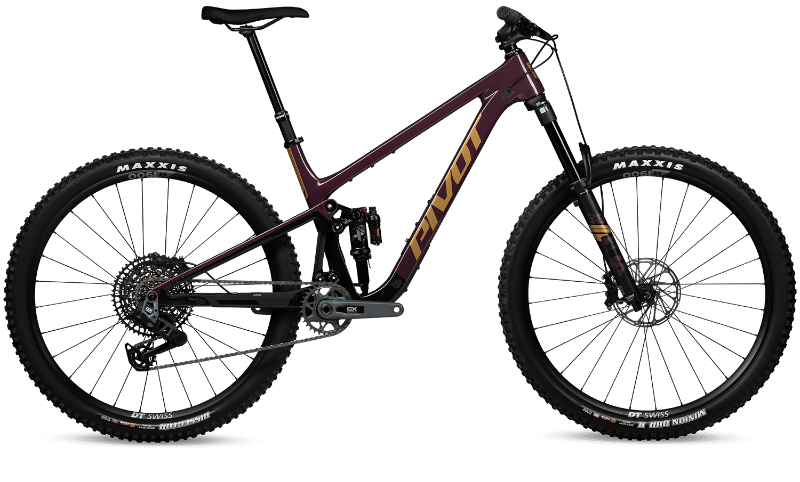

2026 Pivot Trailcat LT geometry
Full frame geometry for the 2026 Pivot Trailcat LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 609 | 405 | 75.6 | 65.3 | 85 | 570 | 343 | 659 | 717 | 431 | 1148 |
| SM | 618 | 430 | 75.6 | 65.3 | 95 | 598 | 368 | 680 | 746 | 431 | 1177 |
| MD | 629 | 460 | 75.6 | 65.3 | 107 | 631 | 394 | 683 | 781 | 431 | 1212 |
| LG | 634 | 475 | 75.6 | 65.3 | 112 | 648 | 432 | 696 | 798 | 433 | 1231 |
| XL | 646 | 495 | 76 | 65.3 | 125 | 662 | 470 | 712 | 822 | 435 | 1257 |
All measurements in millimetres unless marked (°) for angles.
