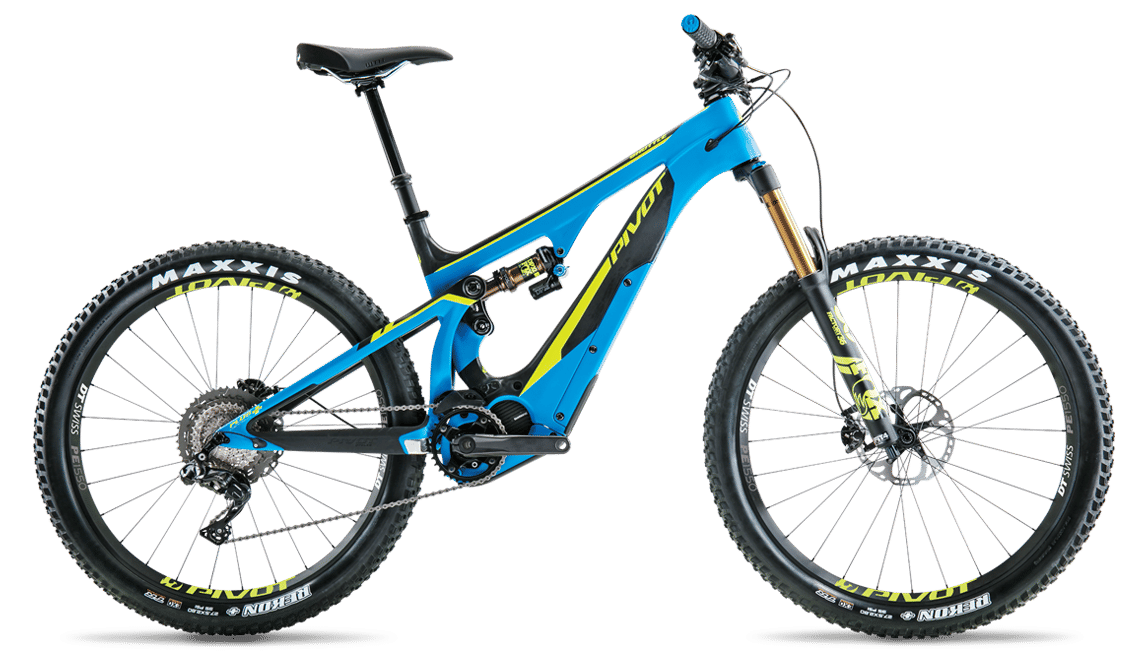

2018 Pivot Shuttle geometry
Full frame geometry for the 2018 Pivot Shuttle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 425 | 74 | 65.8 | 110 | 598 | 394 | 706 | 437 | 1184 |
| M | 612 | 445 | 74 | 65.8 | 120 | 620 | 426 | 706 | 437 | 1208 |
| L | 621 | 465 | 74 | 65.8 | 130 | 643 | 457 | 713 | 437 | 1233 |
| XL | 630 | 490 | 74 | 65.8 | 140 | 671 | 495 | 716 | 437 | 1262 |
All measurements in millimetres unless marked (°) for angles.
