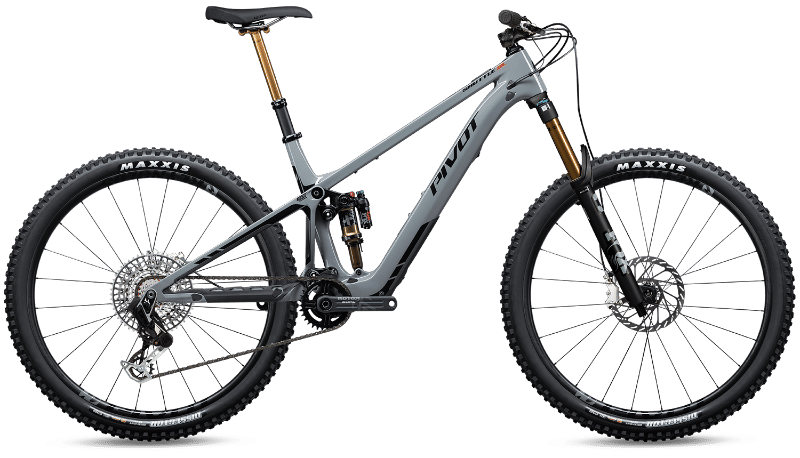

2026 Pivot Shuttle SL geometry
Full frame geometry for the 2026 Pivot Shuttle SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 610 | 435 | 76 | 65 | 95 | 598 | 368 | 665 | 27 | 432 | 1186 | 44 |
| MD | 626 | 465 | 76 | 65 | 112 | 632 | 394 | 668 | 27 | 432 | 1223 | 44 |
| LG | 630 | 478 | 76 | 65 | 117 | 646 | 432 | 674 | 27 | 434 | 1240 | 44 |
| XL | 642 | 500 | 76.8 | 65 | 130 | 660 | 470 | 678 | 27 | 438 | 1272 | 44 |
All measurements in millimetres unless marked (°) for angles.
