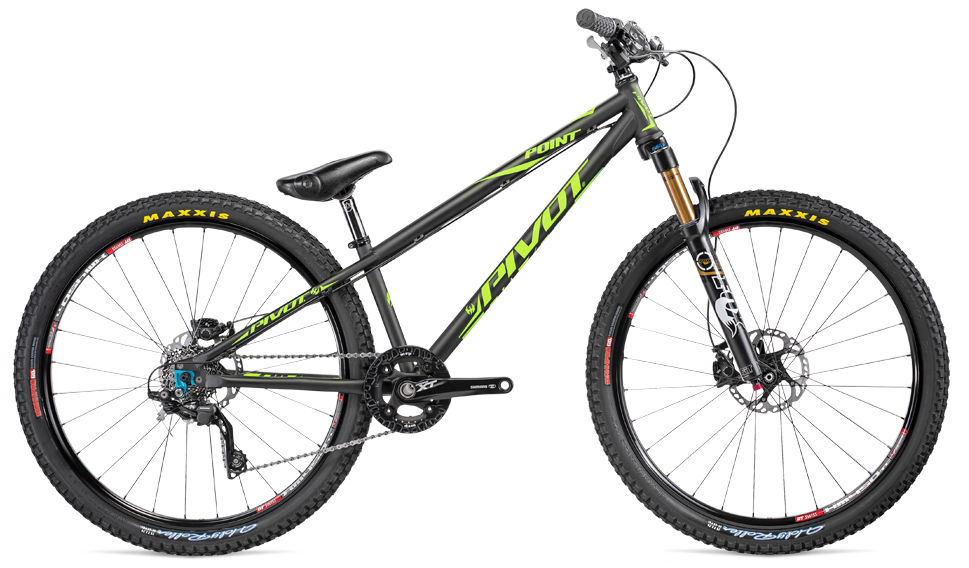

2015 Pivot Point geometry
Full frame geometry for the 2015 Pivot Point, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ML | 557 | 399 | 70.2 | 68 | 114 | 594 | 286 | 610 | 653 | 400 | 1053 |
All measurements in millimetres unless marked (°) for angles.
