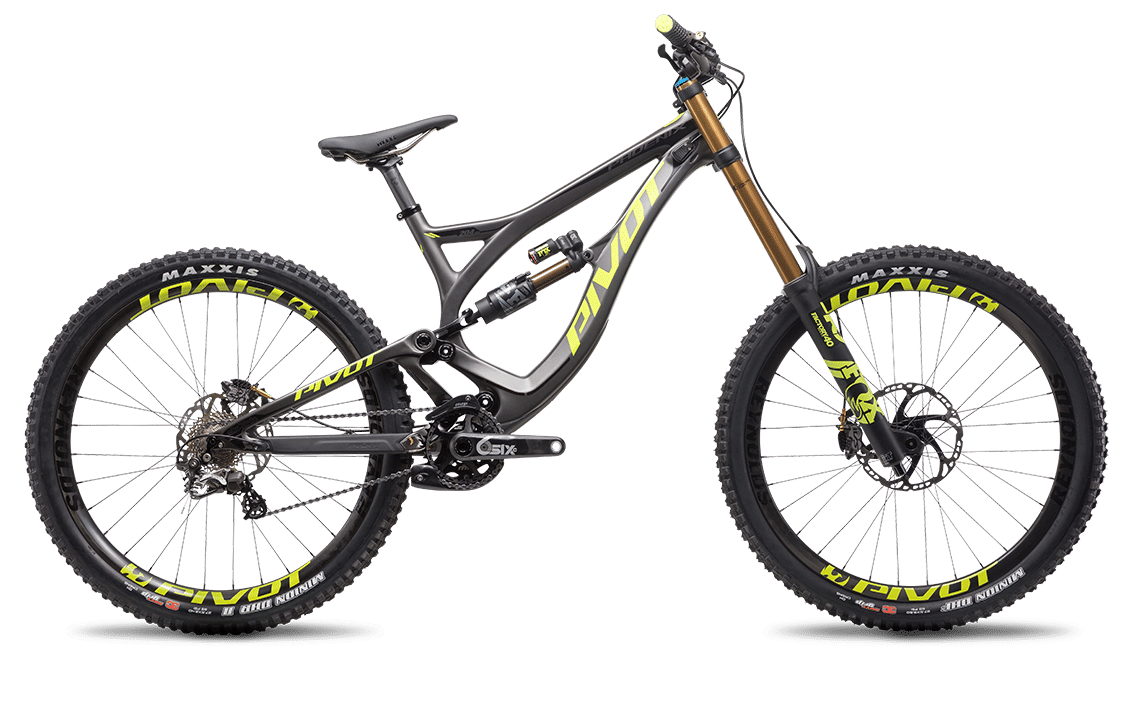

2018 Pivot Phoenix DH Carbon geometry
Full frame geometry for the 2018 Pivot Phoenix DH Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 611 | 455 | 71.8 | 62.5 | 106 | 654 | 431 | 737 | 822 | 442 | 1264 |
| M | 611 | 428 | 71.8 | 62.5 | 106 | 629 | 431 | 737 | 796 | 442 | 1238 |
| S | 611 | 402 | 71.8 | 62.5 | 106 | 603 | 431 | 737 | 769 | 442 | 1211 |
| XL | 611 | 482 | 71.8 | 62.5 | 106 | 680 | 431 | 737 | 849 | 442 | 1291 |
All measurements in millimetres unless marked (°) for angles.
