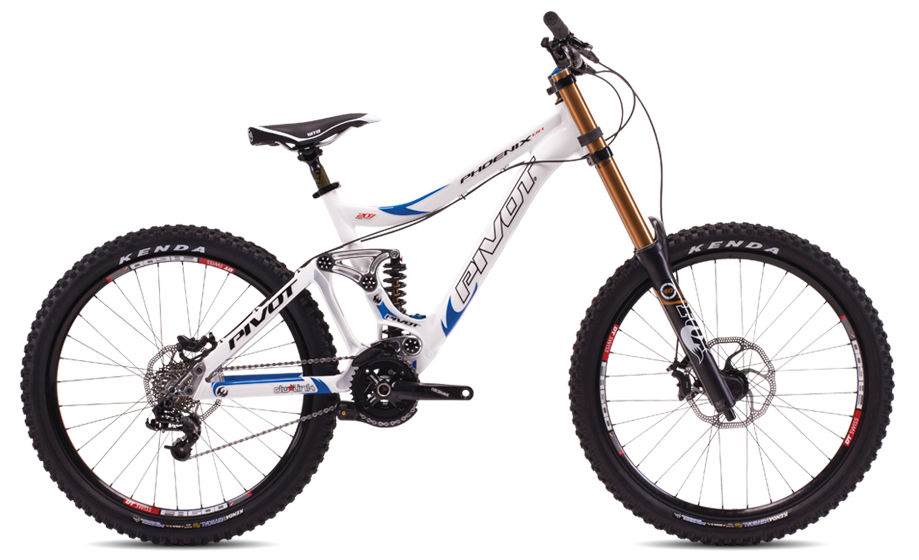

2015 Pivot Phoenix DH Alloy geometry
Full frame geometry for the 2015 Pivot Phoenix DH Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 357 | 65 | 64 | 112 | 569 | 396 | 737 | 696 | 439 | 1135 |
| M | 603 | 380 | 65 | 64 | 119 | 593 | 432 | 737 | 722 | 439 | 1161 |
| L | 608 | 402 | 65 | 64 | 125 | 617 | 457 | 737 | 747 | 439 | 1186 |
All measurements in millimetres unless marked (°) for angles.
