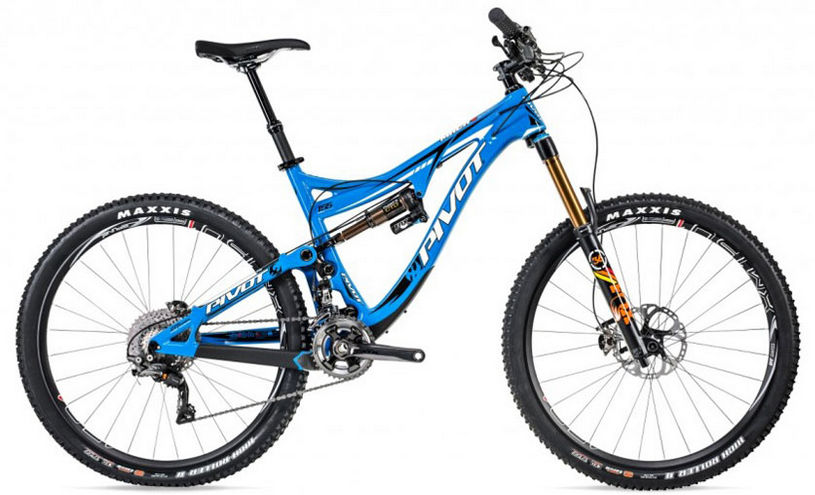

2015 Pivot Mach 6 geometry
Full frame geometry for the 2015 Pivot Mach 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 580 | 368 | 72 | 66 | 89 | 551 | 368 | 709 | 667 | 431 | 1098 |
| S | 586 | 389 | 72 | 66 | 102 | 576 | 406 | 711 | 693 | 431 | 1124 |
| M | 591 | 402 | 72 | 66 | 108 | 591 | 445 | 732 | 708 | 431 | 1139 |
| L | 604 | 414 | 72 | 66 | 120 | 607 | 483 | 737 | 723 | 431 | 1154 |
| XL | 633 | 425 | 72 | 67 | 150 | 627 | 521 | 737 | 744 | 431 | 1175 |
All measurements in millimetres unless marked (°) for angles.
