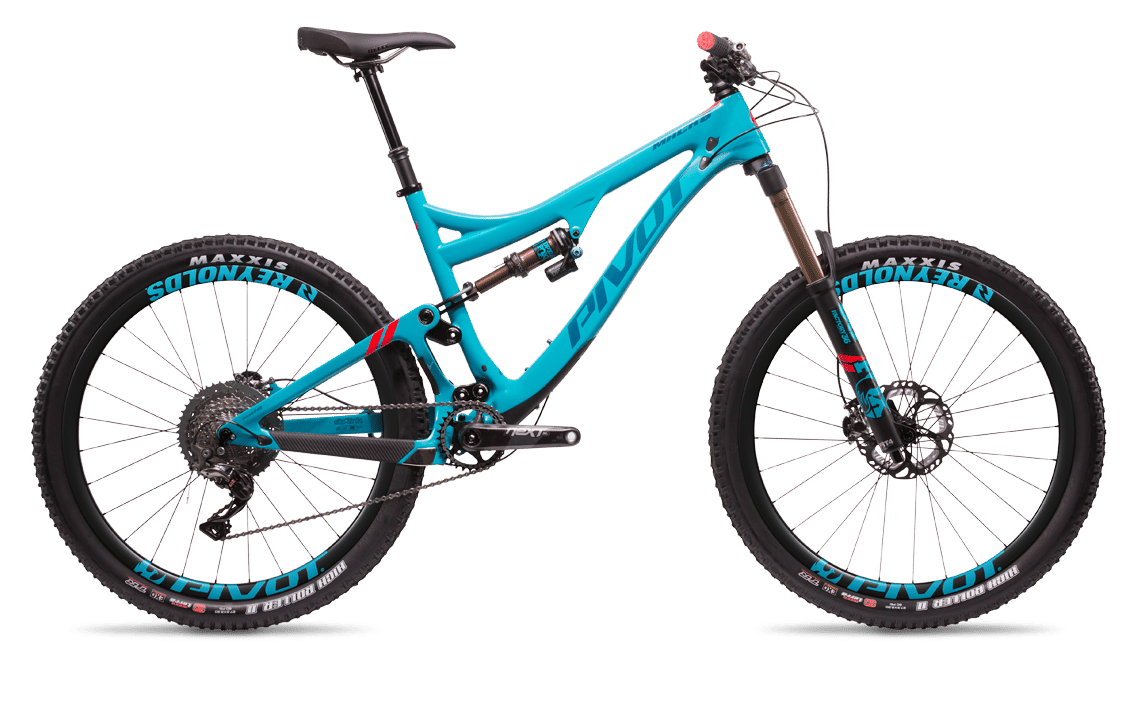

2018 Pivot Mach 6 Carbon geometry
Full frame geometry for the 2018 Pivot Mach 6 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 576 | 370 | 73 | 65.8 | 90 | 545 | 368 | 706 | 430 | 1107 |
| S | 586 | 390 | 73 | 65.8 | 102 | 568 | 394 | 718 | 430 | 1136 |
| M | 595 | 440 | 74 | 65.8 | 108 | 611 | 426 | 726 | 430 | 1180 |
| L | 613 | 460 | 74 | 65.8 | 120 | 634 | 457 | 743 | 430 | 1204 |
| XL | 616 | 485 | 74 | 65.8 | 130 | 662 | 495 | 755 | 430 | 1228 |
All measurements in millimetres unless marked (°) for angles.
