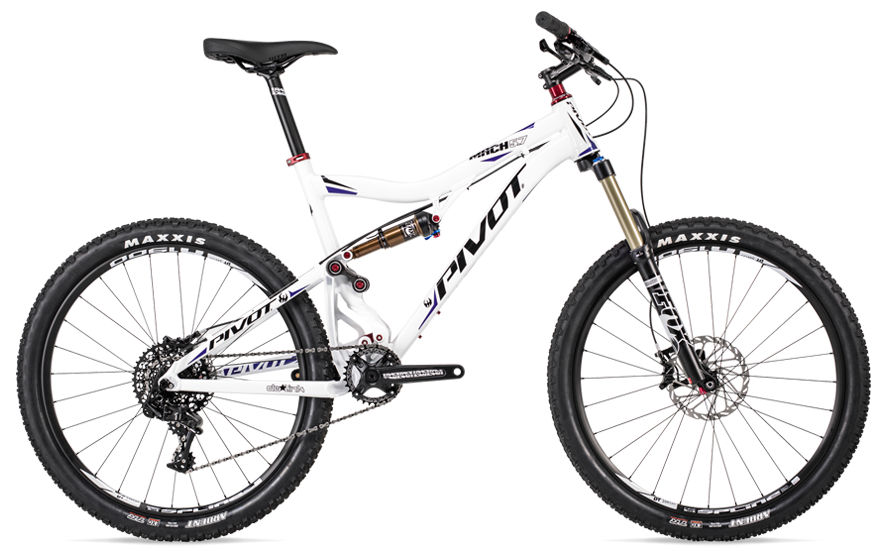

2015 Pivot Mach 5.7 Alloy geometry
Full frame geometry for the 2015 Pivot Mach 5.7 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 373 | 72 | 67 | 89 | 546 | 368 | 655 | 648 | 428 | 1076 |
| S | 560 | 389 | 71 | 67 | 114 | 574 | 419 | 699 | 674 | 428 | 1102 |
| M | 568 | 401 | 71 | 67 | 123 | 589 | 470 | 726 | 690 | 428 | 1118 |
| L | 589 | 420 | 71 | 67 | 145 | 615 | 521 | 726 | 717 | 428 | 1145 |
| XL | 620 | 424 | 71 | 67 | 178 | 629 | 554 | 733 | 733 | 428 | 1161 |
All measurements in millimetres unless marked (°) for angles.
