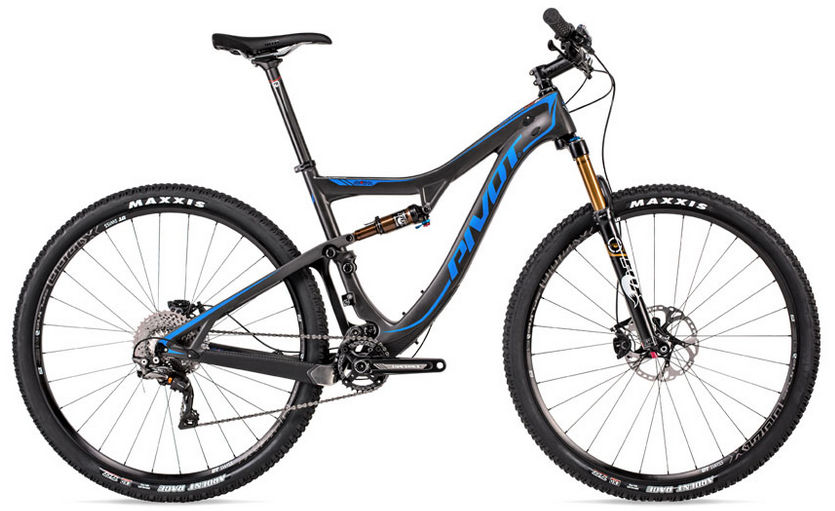

2015 Pivot Mach 429SL geometry
Full frame geometry for the 2015 Pivot Mach 429SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 602 | 423 | 73 | 70 | 102 | 610 | 470 | 744 | 667 | 448 | 1115 |
| S | 602 | 398 | 73 | 70 | 102 | 584 | 432 | 704 | 641 | 448 | 1089 |
| L | 619 | 437 | 73 | 70 | 119 | 629 | 508 | 744 | 687 | 448 | 1135 |
| XL | 647 | 450 | 73 | 70 | 150 | 650 | 559 | 775 | 710 | 448 | 1158 |
All measurements in millimetres unless marked (°) for angles.
