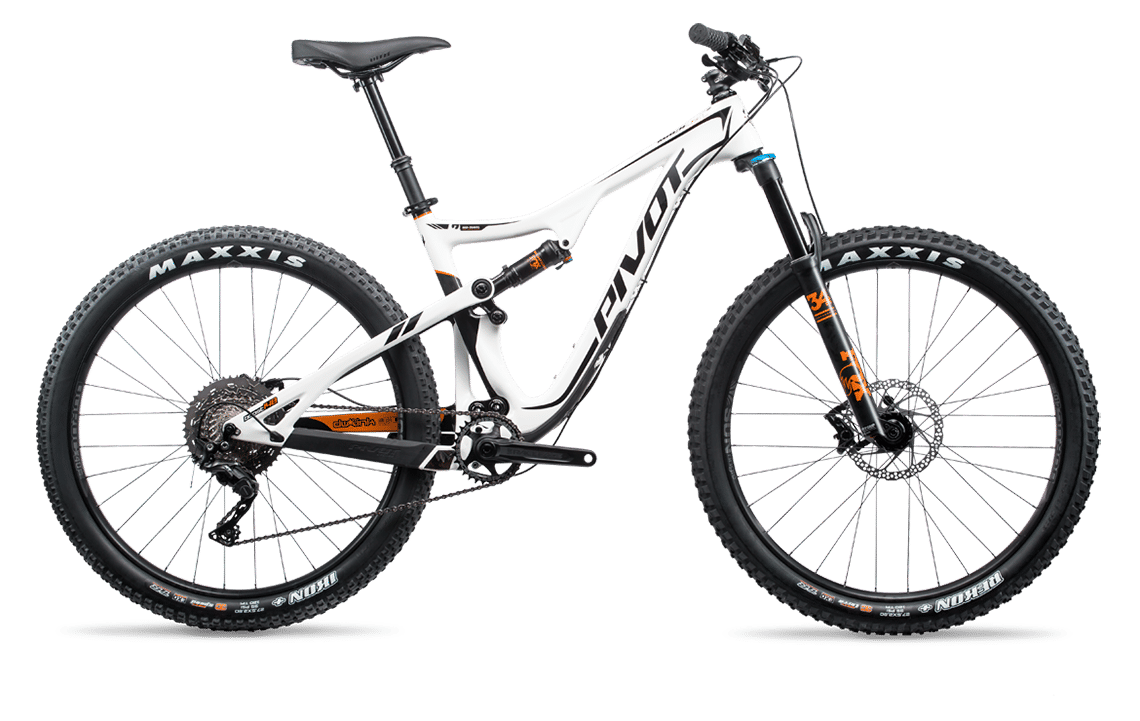

2017 Pivot Mach 429 Trail geometry
Full frame geometry for the 2017 Pivot Mach 429 Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 384 | 72.8 | 67.5 | 102 | 580 | 406 | 725 | 443 | 1110 |
| M | 608 | 409 | 72.8 | 67.5 | 102 | 607 | 444 | 736 | 443 | 1135 |
| L | 625 | 423 | 72.8 | 67.5 | 119 | 629 | 483 | 744 | 443 | 1155 |
| XL | 653 | 435 | 72.8 | 67.5 | 150 | 650 | 521 | 763 | 443 | 1180 |
All measurements in millimetres unless marked (°) for angles.
