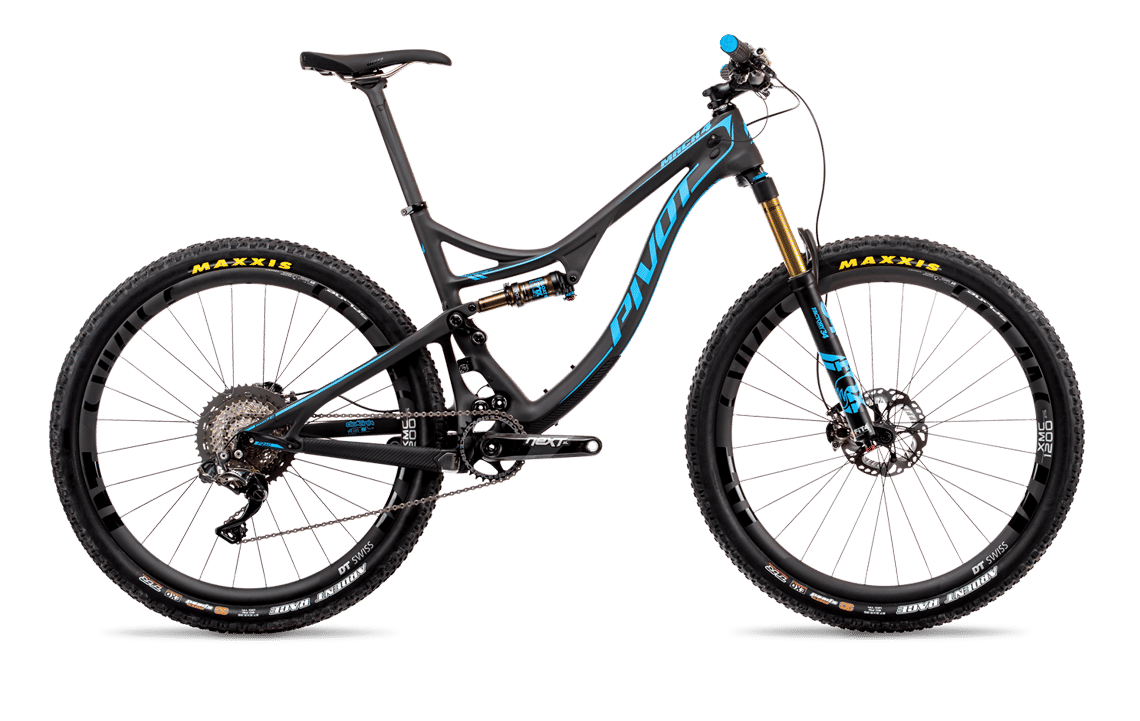

2017 Pivot Mach 4 MK II geometry
Full frame geometry for the 2017 Pivot Mach 4 MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 550 | 392 | 73.8 | 68.5 | 85 | 555 | 368 | 662 | 428 | 1072 |
| S | 569 | 406 | 73 | 69.2 | 102 | 583 | 406 | 667 | 428 | 1085 |
| M | 575 | 424 | 73 | 69.2 | 108 | 603 | 444 | 669 | 428 | 1105 |
| L | 587 | 439 | 73 | 69.2 | 120 | 622 | 483 | 686 | 428 | 1122 |
| L-Long | 597 | 464 | 73.4 | 69.5 | 130 | 645 | 508 | 693 | 428 | 1150 |
All measurements in millimetres unless marked (°) for angles.
