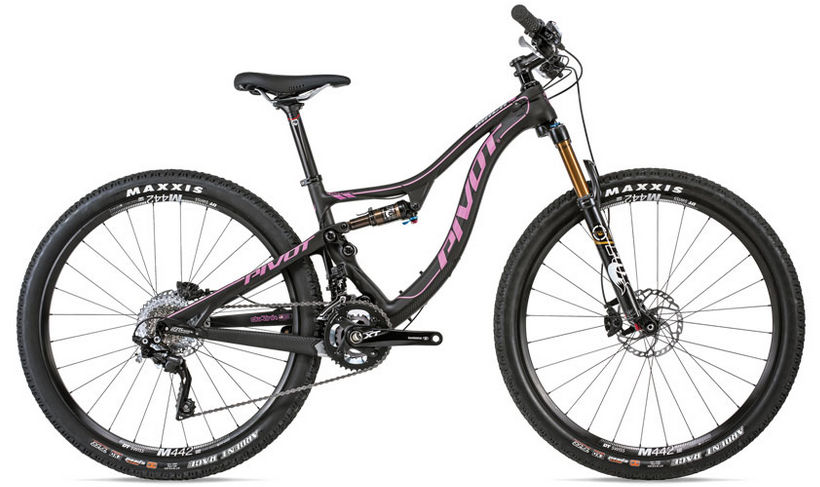

2015 Pivot Mach 4 MK I geometry
Full frame geometry for the 2015 Pivot Mach 4 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 557 | 383 | 73 | 68 | 85 | 555 | 368 | 676 | 652 | 428 | 1080 |
| S | 576 | 396 | 72 | 68 | 102 | 583 | 406 | 680 | 665 | 428 | 1093 |
| M | 582 | 414 | 72 | 68 | 108 | 603 | 445 | 682 | 685 | 428 | 1113 |
| L | 594 | 420 | 72 | 68 | 120 | 622 | 483 | 698 | 701 | 428 | 1129 |
| XL | 604 | 454 | 71 | 69 | 130 | 642 | 508 | 700 | 729 | 428 | 1157 |
All measurements in millimetres unless marked (°) for angles.
