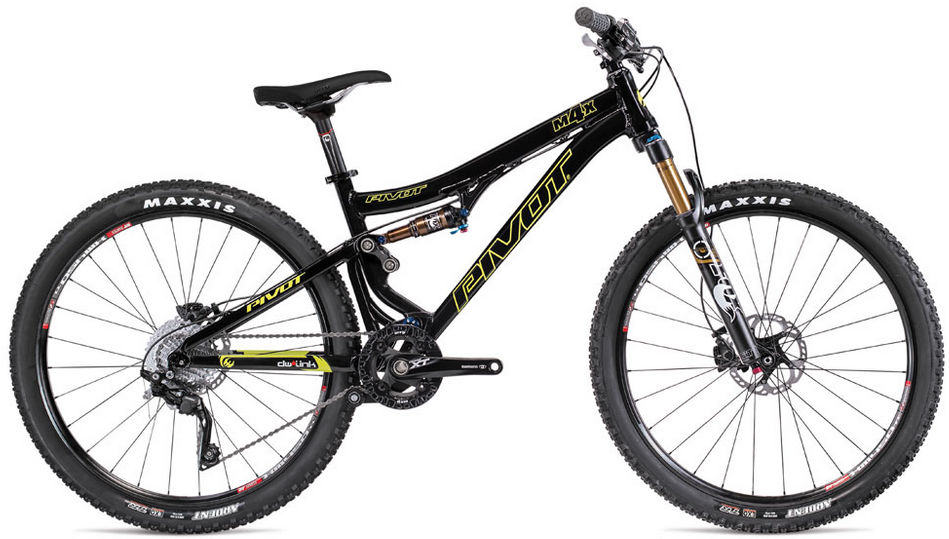

2015 Pivot M4X geometry
Full frame geometry for the 2015 Pivot M4X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 545 | 420 | 72 | 67.5 | 114 | 597 | 381 | 648 | 681 | 419 | 1100 |
| S | 545 | 389 | 72 | 67.5 | 114 | 566 | 381 | 648 | 650 | 419 | 1069 |
All measurements in millimetres unless marked (°) for angles.
