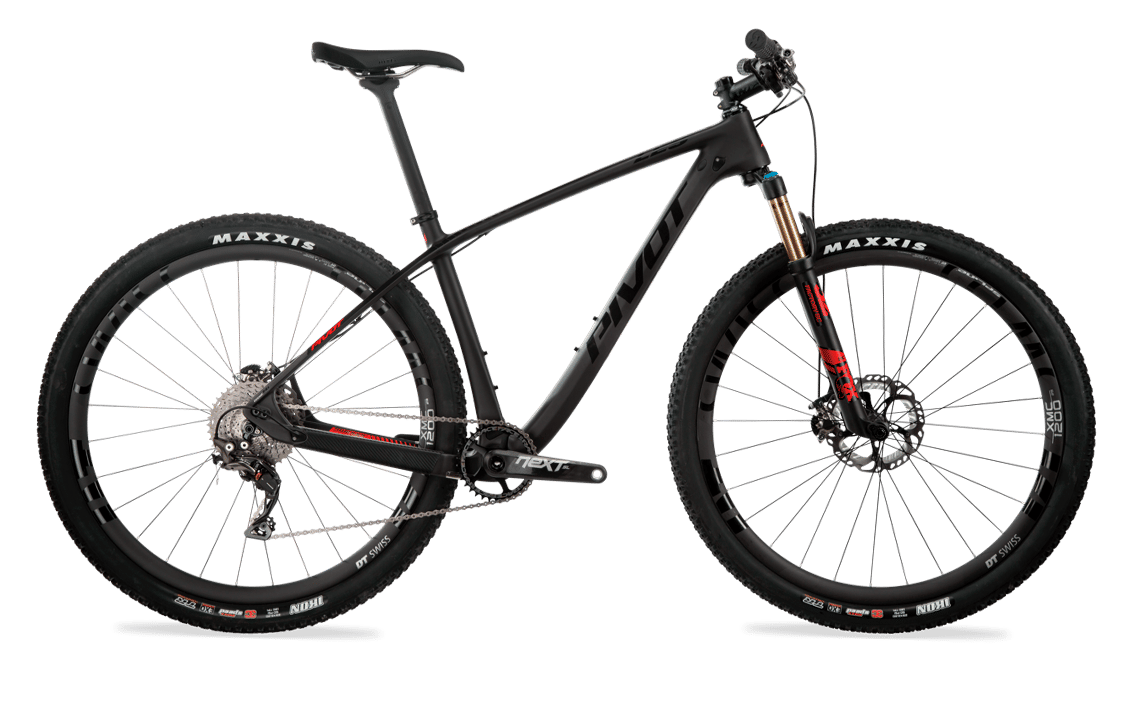

2017 Pivot Les geometry
Full frame geometry for the 2017 Pivot Les, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 396 | 73 | 69.3 | 98 | 582 | 406 | 724 | 648 | 434 | 1082 |
| M | 613 | 414 | 72.5 | 69.5 | 102 | 607 | 451 | 742 | 665 | 434 | 1099 |
| L | 631 | 423 | 72.5 | 69.5 | 113 | 622 | 483 | 752 | 681 | 434 | 1115 |
| XL | 651 | 443 | 72.5 | 70 | 140 | 648 | 533 | 754 | 702 | 434 | 1136 |
All measurements in millimetres unless marked (°) for angles.
