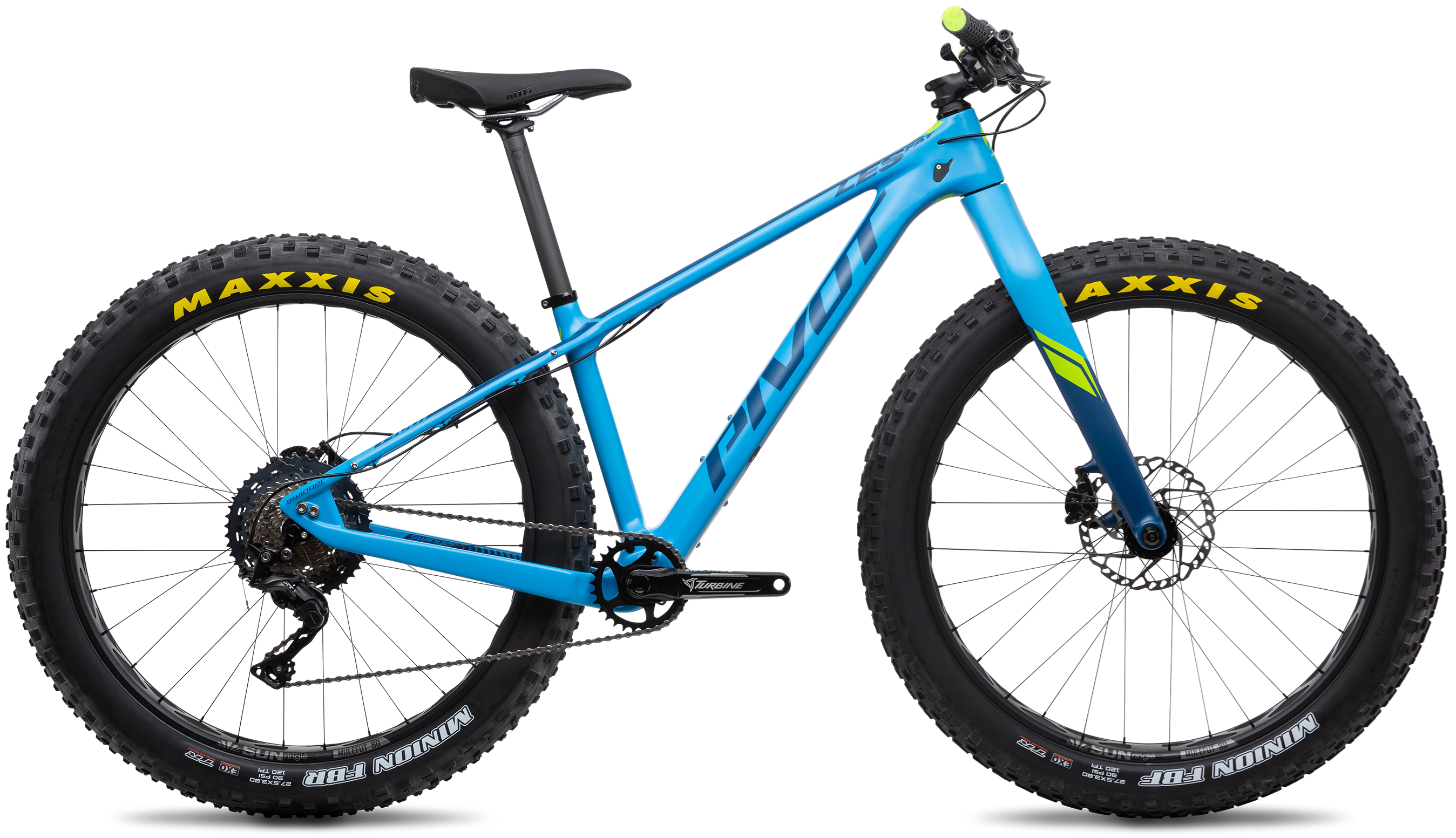

2019 Pivot Les Fat (27.5x3.8) geometry
Full frame geometry for the 2019 Pivot Les Fat (27.5x3.8), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 604 | 369 | 72 | 69 | 102 | 582 | 381 | 755 | 437 | 1096 |
| M | 618 | 417 | 72 | 69 | 117 | 607 | 432 | 796 | 437 | 1122 |
| L | 633 | 434 | 72 | 69 | 133 | 629 | 483 | 837 | 437 | 1145 |
All measurements in millimetres unless marked (°) for angles.
