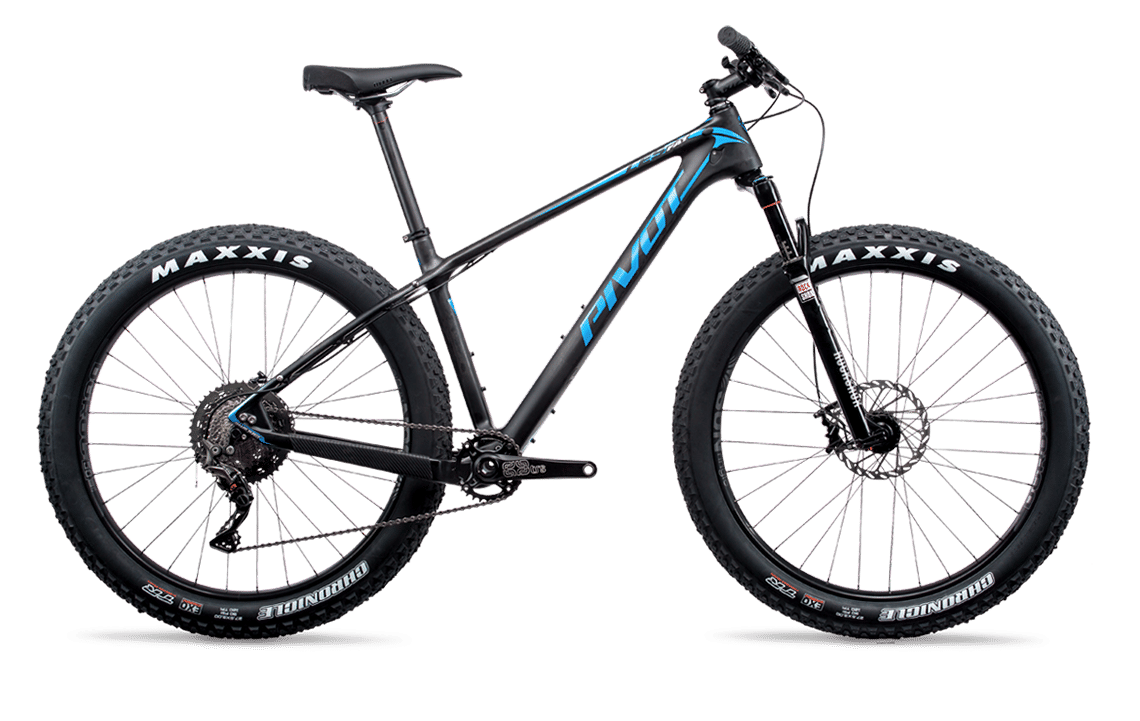

2017 Pivot Les Fat (26x4.8) geometry
Full frame geometry for the 2017 Pivot Les Fat (26x4.8), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 401 | 72.5 | 69.5 | 102 | 580 | 381 | 753 | 649 | 447 | 1096 |
| M | 618 | 422 | 72.5 | 69.5 | 117 | 605 | 432 | 794 | 675 | 447 | 1122 |
| L | 633 | 439 | 72.5 | 69.5 | 133 | 626 | 483 | 835 | 698 | 447 | 1145 |
All measurements in millimetres unless marked (°) for angles.
