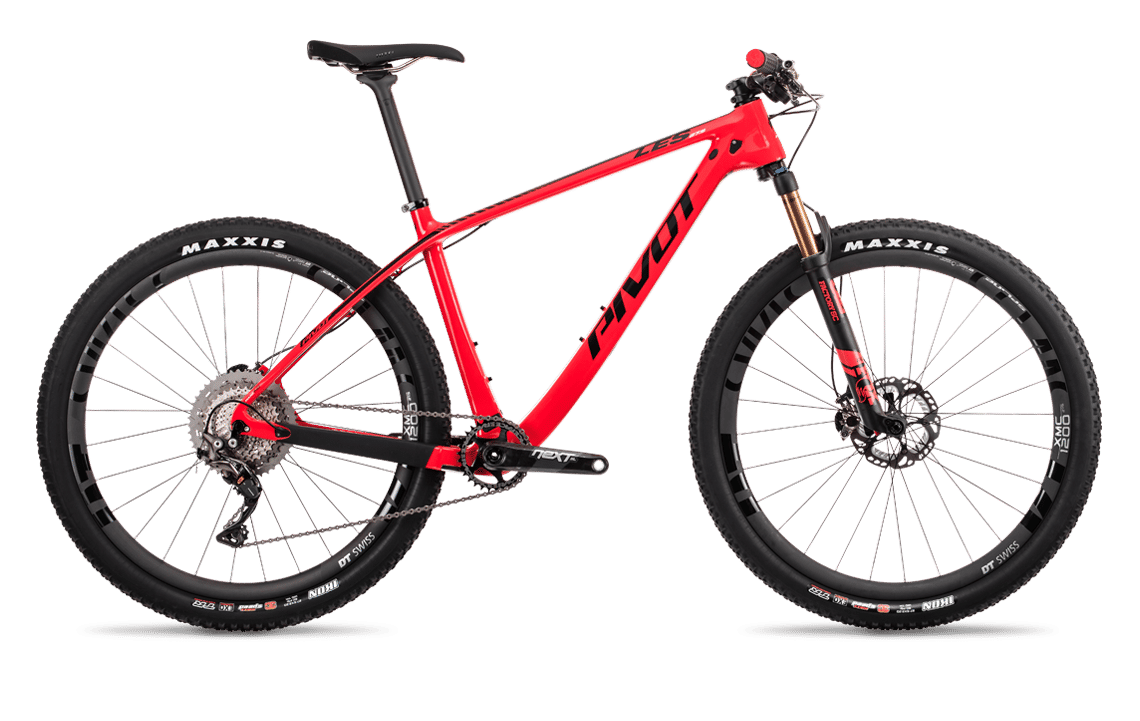

2017 Pivot Les 27.5 geometry
Full frame geometry for the 2017 Pivot Les 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 573 | 384 | 73.8 | 69.5 | 89 | 551 | 368 | 648 | 634 | 426 | 1060 |
| S | 587 | 400 | 73 | 69.2 | 102 | 579 | 406 | 686 | 648 | 426 | 1074 |
| M | 592 | 413 | 72.5 | 69.2 | 108 | 599 | 445 | 724 | 663 | 426 | 1089 |
| L | 605 | 428 | 72.5 | 68.8 | 120 | 619 | 483 | 730 | 680 | 426 | 1106 |
All measurements in millimetres unless marked (°) for angles.
