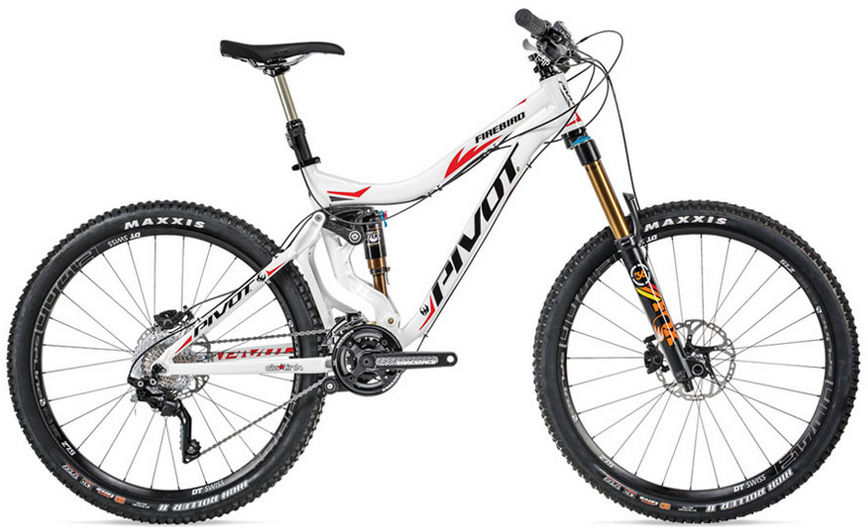

2015 Pivot Firebird Alloy 27.5 geometry
Full frame geometry for the 2015 Pivot Firebird Alloy 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 368 | 72 | 66 | 117 | 572 | 419 | 730 | 675 | 438 | 1113 |
| M | 597 | 380 | 72 | 66 | 122 | 584 | 451 | 730 | 688 | 438 | 1126 |
| L | 613 | 400 | 72 | 66 | 140 | 610 | 483 | 730 | 715 | 438 | 1153 |
All measurements in millimetres unless marked (°) for angles.
