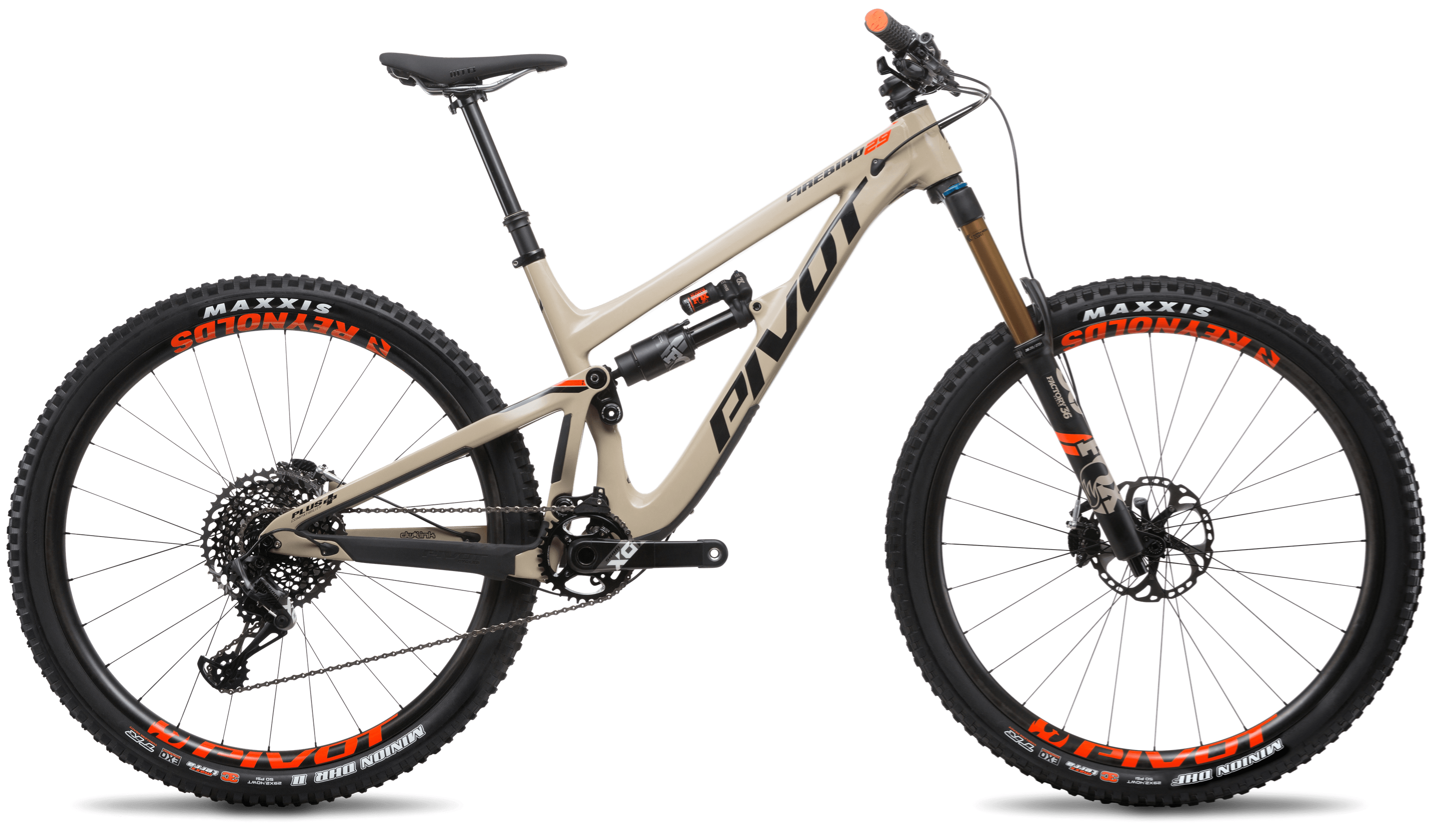

2019 Pivot Firebird 29 geometry
Full frame geometry for the 2019 Pivot Firebird 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 599 | 432 | 76.2 | 65.5 | 95 | 594 | 394 | 689 | 429 | 1186 | 44 |
| M | 610 | 460 | 76.2 | 65.5 | 105 | 625 | 424 | 696 | 429 | 1217 | 44 |
| L | 617 | 480 | 76.2 | 65.5 | 115 | 645 | 457 | 709 | 429 | 1240 | 44 |
| XL | 627 | 500 | 76.2 | 65.5 | 125 | 668 | 495 | 719 | 429 | 1265 | 44 |
All measurements in millimetres unless marked (°) for angles.
