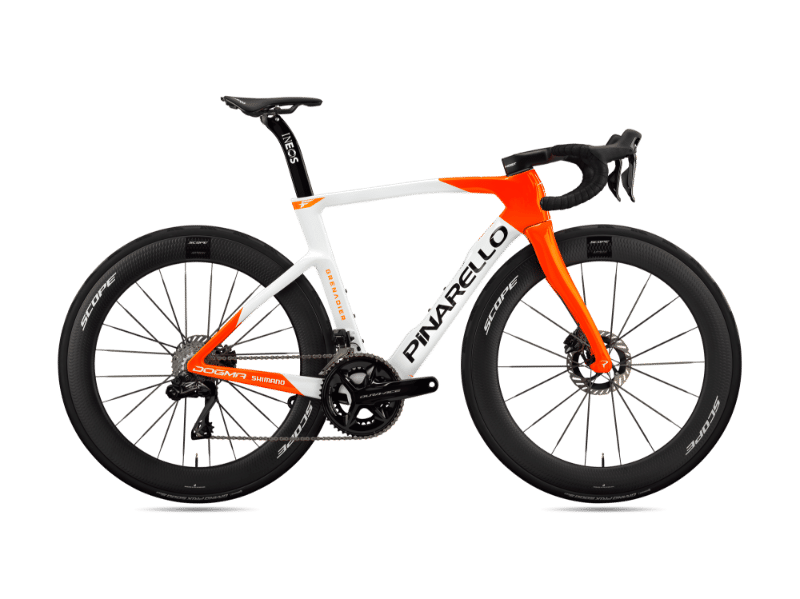

2026 Pinarello Dogma F geometry
Full frame geometry for the 2026 Pinarello Dogma F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 430 | 502 | 351.5 | 74.4 | 69.5 | 102 | 425 | 67 | 407 | 47 |
| 465 | 517.3 | 365.4 | 74.4 | 70.5 | 109 | 450 | 72 | 407 | 47 |
| 500 | 525.2 | 372.2 | 74 | 71.4 | 114 | 465 | 72 | 407 | 47 |
| 515 | 532.1 | 378.2 | 73.7 | 72 | 119 | 485 | 72 | 407 | 47 |
| 530 | 542.4 | 383.3 | 73.7 | 72.5 | 128 | 500 | 72 | 407 | 47 |
| 540 | 551 | 385.3 | 73.4 | 72.8 | 136 | 510 | 72 | 408 | 47 |
| 550 | 561.5 | 389.2 | 73.4 | 72.8 | 147 | 520 | 72 | 408 | 47 |
| 560 | 570.1 | 390.8 | 73 | 73.2 | 154.5 | 525 | 72 | 409 | 47 |
| 575 | 584.8 | 396.7 | 73 | 73.7 | 168 | 540 | 72 | 409 | 47 |
| 595 | 613.2 | 393.4 | 72.4 | 73.4 | 204 | 560 | 67 | 409 | 47 |
| 620 | 651.6 | 410 | 72 | 73.4 | 244 | 600 | 67 | 411 | 47 |
All measurements in millimetres unless marked (°) for angles.
