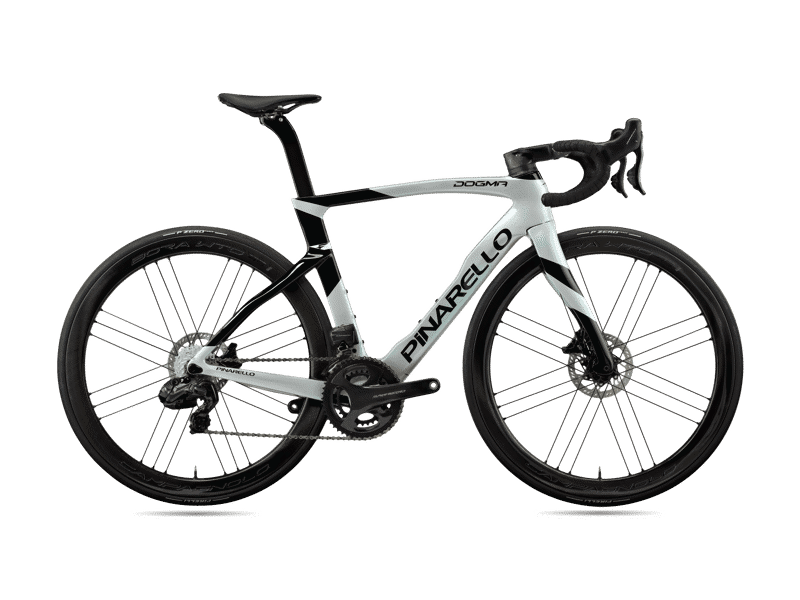

2024 Pinarello Dogma F geometry
Full frame geometry for the 2024 Pinarello Dogma F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 430 | 502.4 | 351.4 | 74.4 | 69.5 | 97 | 500 | 67 | 406 | 43 |
| 465 | 517.6 | 364.8 | 74.4 | 70.5 | 104 | 515 | 72 | 406 | 43 |
| 500 | 525.4 | 372.1 | 74 | 71.4 | 109 | 525 | 72 | 406 | 43 |
| 515 | 532.3 | 378 | 73.7 | 72 | 114 | 535 | 72 | 406 | 43 |
| 530 | 542.6 | 383.3 | 73.7 | 72.5 | 123 | 545 | 72 | 406 | 43 |
| 540 | 551.2 | 385 | 73.4 | 72.8 | 131 | 550 | 72 | 408 | 43 |
| 550 | 561.6 | 388.8 | 73.4 | 72.8 | 142 | 557 | 72 | 408 | 43 |
| 560 | 570.2 | 390.7 | 73 | 73.2 | 149.5 | 565 | 72 | 408 | 43 |
| 575 | 584.8 | 396.7 | 73 | 73.7 | 163 | 575 | 72 | 408 | 43 |
| 595 | 613.3 | 393.3 | 72.4 | 73.4 | 199 | 587 | 67 | 408 | 43 |
| 620 | 651.7 | 410.1 | 72 | 73.4 | 239 | 620 | 67 | 411 | 43 |
All measurements in millimetres unless marked (°) for angles.
