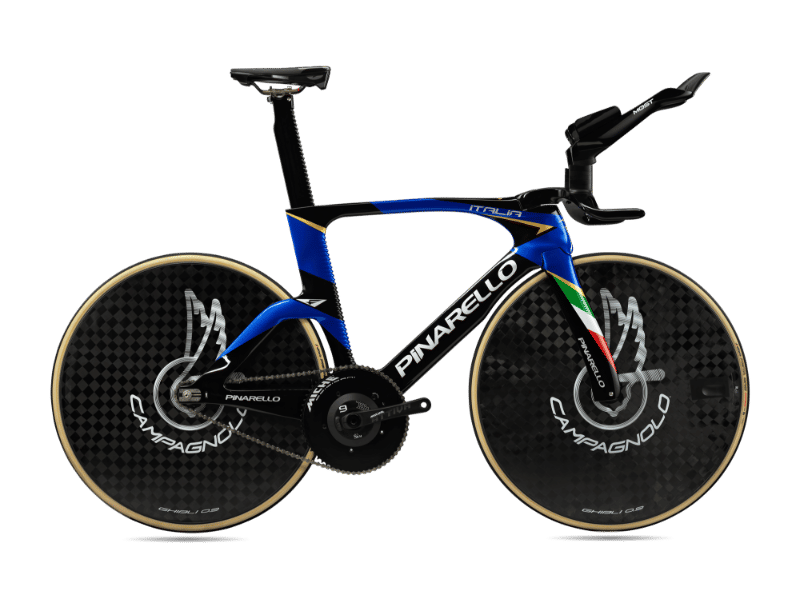

2026 Pinarello Bolide F HR C geometry
Full frame geometry for the 2026 Pinarello Bolide F HR C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 481 | 469 | 377 | 77 | 72 | 70 | 486 | 481 | 62 | 390 | 43 |
| 506 | 492 | 402 | 77 | 73 | 90 | 512 | 506 | 62 | 390 | 43 |
| 521 | 508 | 430 | 77 | 73 | 106 | 542 | 521 | 62 | 390 | 43 |
All measurements in millimetres unless marked (°) for angles.
