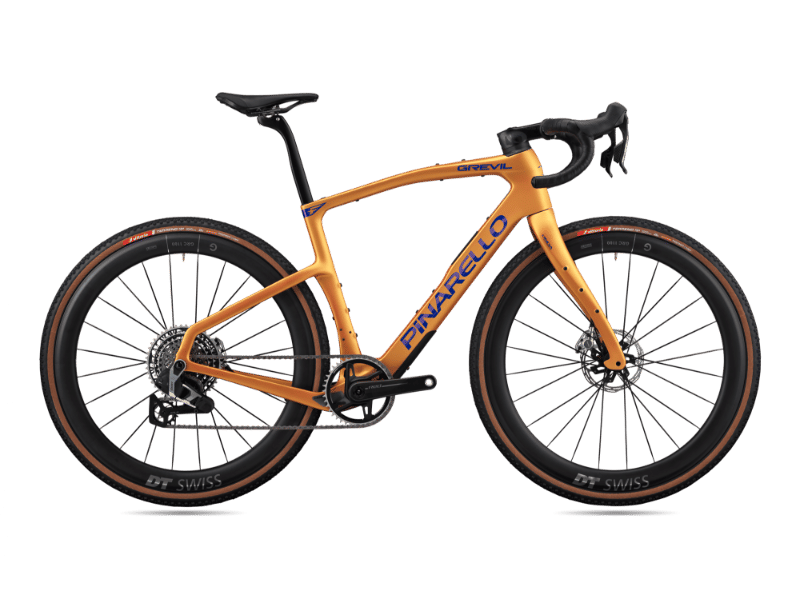

2027 Pinarello Grevil F geometry
Full frame geometry for the 2027 Pinarello Grevil F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470 | 553.2 | 368.4 | 74.5 | 70.3 | 115 | 530 | 410 | 72 | 603.9 | 430 | 1023.5 | 55 | 72.4 |
| 500 | 568.3 | 376.1 | 74 | 70.5 | 130 | 545 | 440 | 72 | 614.5 | 430 | 1034.2 | 55 | 70.7 |
| 530 | 583.2 | 383.7 | 73.8 | 70.8 | 150 | 558 | 470 | 67 | 625.8 | 430 | 1047 | 55 | 69 |
| 550 | 598.4 | 390.4 | 73.5 | 71.8 | 160 | 570 | 490 | 67 | 621.9 | 430 | 1043 | 50 | 67.5 |
| 575 | 613.6 | 398.2 | 73 | 72 | 175 | 587 | 510 | 67 | 631.9 | 430 | 1053.1 | 50 | 65.9 |
| 600 | 633.7 | 406.9 | 72.5 | 72.3 | 195 | 607 | 545 | 67 | 644.3 | 430 | 1065.5 | 50 | 64.2 |
All measurements in millimetres unless marked (°) for angles.
