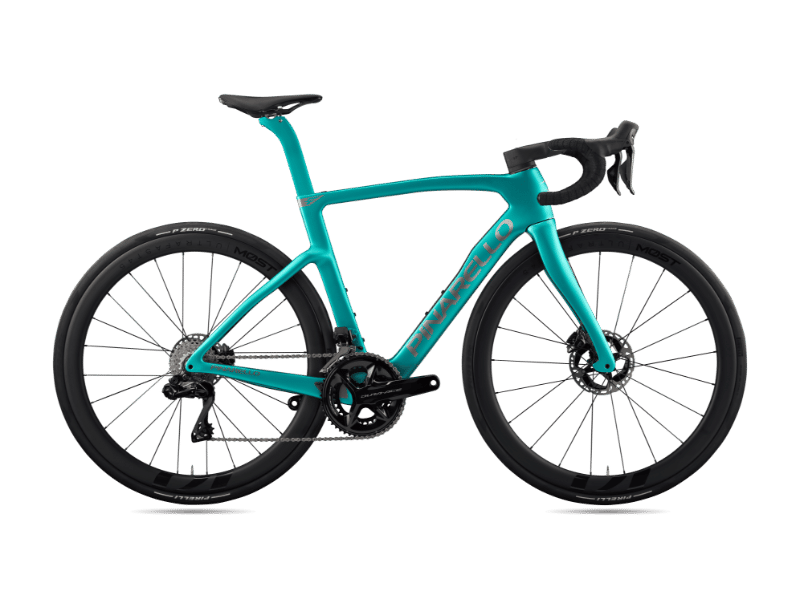

2027 Pinarello F geometry
Full frame geometry for the 2027 Pinarello F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 502 | 351.3 | 74.4 | 69.5 | 102 | 500 | 425 | 67 | 410 | 47 |
| 450 | 517.3 | 365.4 | 74.4 | 70.5 | 109 | 515 | 450 | 72 | 410 | 47 |
| 465 | 525.2 | 372.2 | 74 | 71.4 | 114 | 525 | 465 | 72 | 411 | 47 |
| 485 | 532.1 | 378.2 | 73.7 | 72 | 119 | 535 | 485 | 72 | 411 | 47 |
| 500 | 542.4 | 385.6 | 73.7 | 72.5 | 128 | 545 | 500 | 72 | 411 | 47 |
| 515 | 557.7 | 388.3 | 73.4 | 72.8 | 143 | 555 | 515 | 72 | 413 | 47 |
| 525 | 570.1 | 390.8 | 73 | 73.2 | 154.5 | 565 | 525 | 72 | 413 | 47 |
| 560 | 599.2 | 395.5 | 73 | 73.7 | 183 | 578 | 560 | 72 | 413 | 47 |
| 580 | 633.4 | 400.4 | 72.4 | 73.4 | 225 | 600 | 580 | 67 | 413 | 47 |
All measurements in millimetres unless marked (°) for angles.
